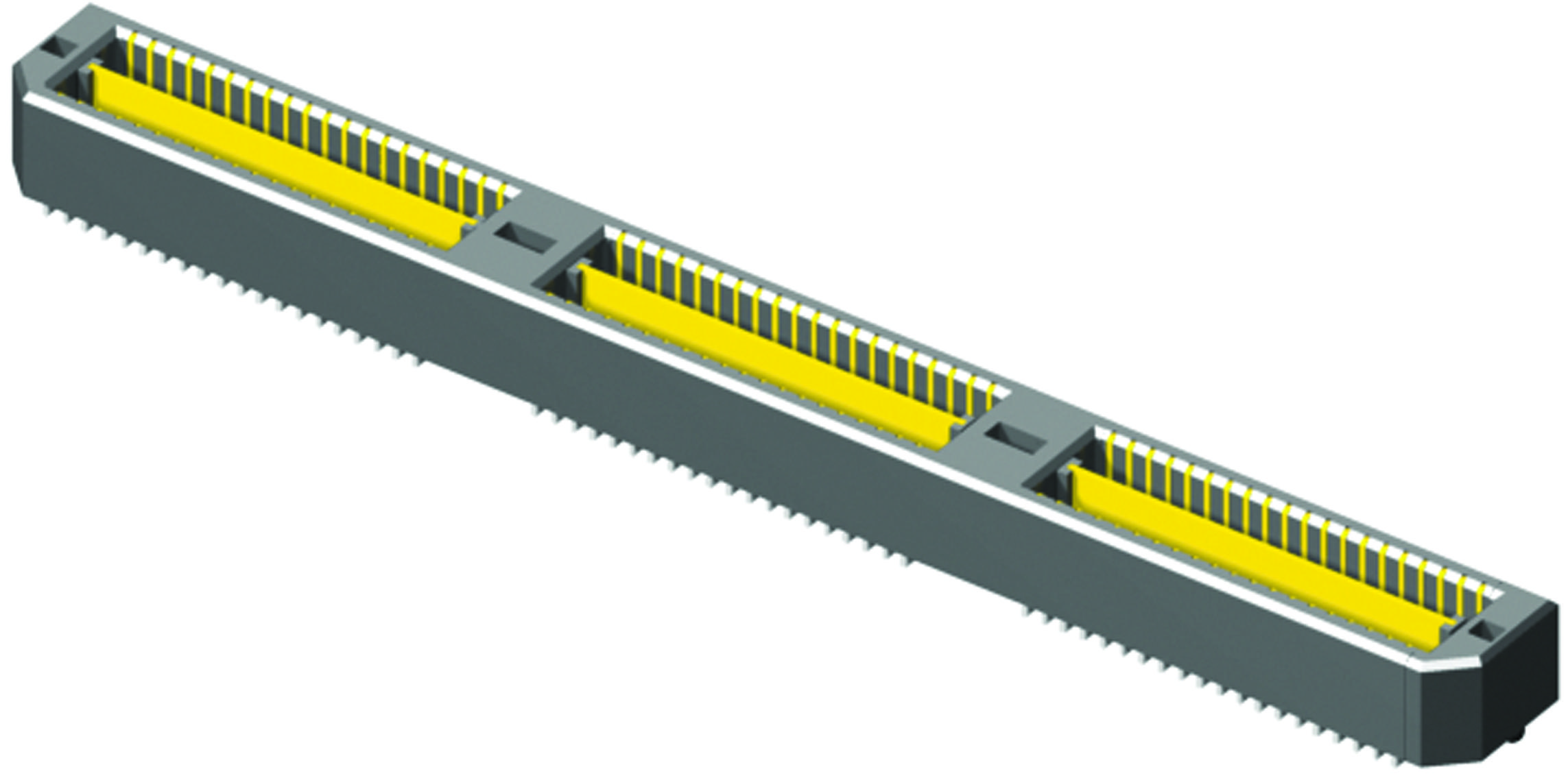

SAMTEC QTE04001LDA High-Speed Ground Plane Terminal Strip
The QTE-040-01-L-D-A is a high-speed, 80-pole ground plane terminal strip designed for industrial applications. It features two rows of contacts with a 0.80mm stack height and uses gold-plated phosphor bronze contacts for reliable connectivity. The terminal strip is equipped with a liquid crystal polymer insulator, ensuring durability in demanding environments. Compatible with series connectors like EQCD, EQRF, QSE, and QSE-EM, it supports high-frequency data transmission up to 28 GHz. Suitable for PCB stacking, the module offers long-lasting performance with a max cycle count of 100 and RoHS compliance, tailored for high-speed signal needs.
SAMTEC QTE04001LDA High-Speed Ground Plane Terminal Strip Specifications:
- Number of Poles: 80
- Stack Height: 0.80mm (0.03 inches)
- Contact Material: Phosphor Bronze with Gold Plating (0.76 µm or 50 µin)
- Insulator Material: Liquid Crystal Polymer
- Max Cycles: 100
- Operating Temperature Range: -55°C to +105°C
- Voltage Rating: Not specified
- RoHS Compliant: Yes
- Compatibility: EQCD, EQRF, QSE, QSE-EM series connectors
- Mounting Style: Edge Mount, Guide Posts, Screw Down & Friction Lock
- Data Rate Support: Up to 28 GHz
- Dimensions: 80-pole configuration, 0.80mm height, board stacking possible
- Protection: RoHS and MFG tested for durability
- Performance: Suitable for high-speed digital signals, PCB stacking, and reliable electrical connections
Buy the Samtec QTE04001LDA – Reliable High-Speed Ground Plane Terminal for Industrial Applications
Enhance your industrial electronic setups with the high-speed ground plane terminal strip. Featuring 80 poles, 0.80mm stack height, and gold-plated phosphor bronze contacts, this device guarantees reliable connectivity in demanding environments. Equipped with a durable liquid crystal polymer insulator, it supports high-frequency data transmission up to 28 GHz and offers excellent PCB stacking compatibility. Perfect for high-speed digital applications, the terminal strip is RoHS compliant, MFG tested for longevity, and ideal for engineers seeking performance, durability, and precision in their electrical connections.
Buy Samtec QTE04001LDA now and experience unmatched reliability and high-speed performance for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC QTE04001LDA?
You can click on the BUY or RFQ button to purchase QTE04001LDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QTE04001LDA?
You can download the QTE04001LDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QTE04001LDA?
SAMTEC
