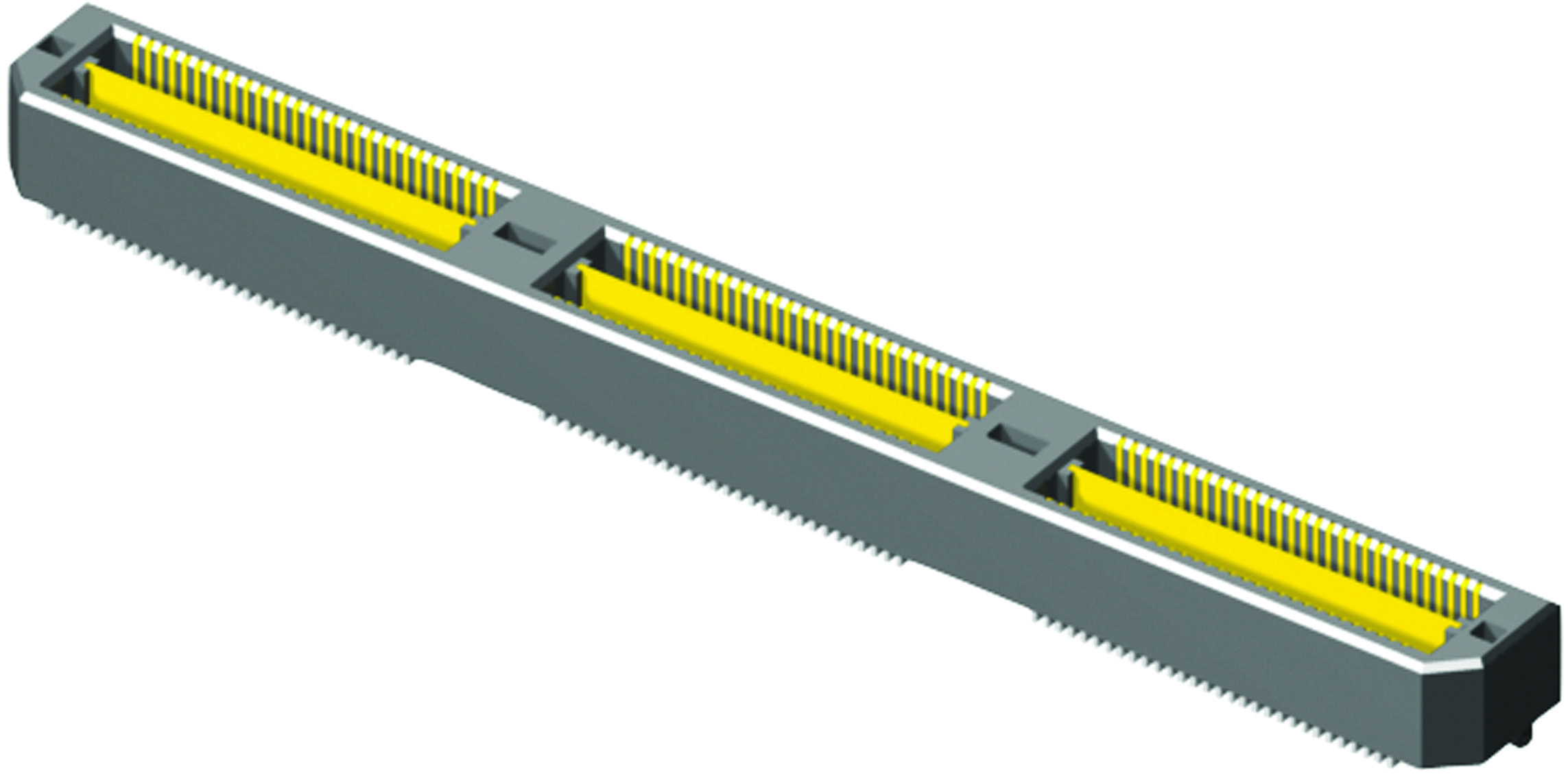

SAMTEC QTH06001LDA Ground Plane Terminal Strip
The QTH-060-01-L-D-A is a high-speed ground plane terminal strip with 120 poles in two rows, featuring a 0.50mm pitch and 0.25mm gold-plated phosphor bronze contacts. Made with an LCP insulator, it supports adjustable stack heights from 5.00mm to 30.00mm, making it suitable for industrial high-speed and high-density applications. The terminal strip is lead-free, solderable, rated at 2A current and 125VAC voltage, and compatible with various connector series such as HQCD, QSH, QSH-EM, QSH-RA. Designed for durability and precise connections.
SAMTEC QTH06001LDA Ground Plane Terminal Strip Specifications:
- Number of poles: 120, arranged in two rows
- Pitch: 0.50mm
- Contact Material: Phosphor Bronze with 0.25mm gold plating
- Insulator Material: Liquid Crystal Polymer (LCP)
- Current Rating: 2A
- Voltage Rating: 125VAC
- Stack Height: Adjustable from 5.00mm to 30.00mm
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
- Processing: Compatible with surface-mount technology, suitable for automated assembly
- Series Compatibility: HQCD, QSH, QSH-EM, QSH-RA
- Designed for high-speed data and industrial connectivity applications
Buy the Buy Samtec QTH-060-01-L-D-A High-Speed Ground Plane Terminal Strip Online
Order the Samtec ground plane terminal strip online now and enjoy fast, secure delivery. Designed for industrial high-speed applications, it features 120 poles with a 0.50mm pitch, gold-plated contacts for durability, and an adjustable stack height from 5mm to 30mm. Made with high-quality liquid crystal polymer insulator, this lead-free component is fully solderable, RoHS compliant, and supports 2A current at 125VAC. Perfect for high-density signal connections, ensuring reliable performance in demanding environments.
Get Samtec QTH-060-01-L-D-A high-speed connector today—built for precise, reliable connections in industrial and high-speed electronics.
Frequently Asked Questions
Where can I buy SAMTEC QTH06001LDA?
You can click on the BUY or RFQ button to purchase QTH06001LDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QTH06001LDA?
You can download the QTH06001LDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QTH06001LDA?
SAMTEC
