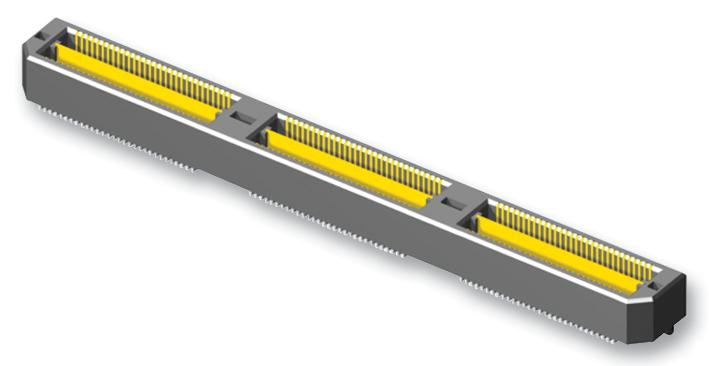

SAMTEC QTH06001LDATR High-Speed Board Connector
The QTH-060-07-F-D-A is an extended life, high-performance board-to-board connector with a liquid crystal polymer insulator and phosphor bronze contact material. It features gold or tin plating over nickel, a current rating of 125 VAC, and is RoHS compliant. Designed for stack heights from 5 mm to 25 mm, this connector supports high-speed differential signals up to 33 Gbps with low insertion loss. Its robust construction enables reliable operation in industrial and high-frequency data transfer applications, making it suitable for demanding electronic systems requiring precise connectivity and signal integrity.
SAMTEC QTH06001LDATR High-Speed Board Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50μ" Ni
- Current Rating: 125 VAC
- Operating Temp Range: -55°C to +125°C
- Stack Heights: 5 mm, 15 mm, 22 mm, 30 mm
- Gold Plating: 30μ" (0.76 μm) upon request
- Automated Assembly: Lead-Free Solderable, Coplanarity < 0.004" (0.10 mm) - 0.006" (0.15 mm)
- Connector Position: 80, 120, 150 per row
- Rated Cycles: 100
- Supported Data Rates: Up to 33 Gbps for differential pairs
- RoHS Compliant: Yes
- Certifications & Recognitions: See www.samtec.com/quality
- Maximum Stack Height: 25 mm with PCB effects
- Includes edge mount and guide posts with retention options
Buy the Samtec QTH-060-07-F-D-A Reliable High-Speed Data Connector for Industrial Applications
Discover the versatile high-speed board connector, designed for demanding industrial applications. Featuring liquid crystal polymer insulation and gold or tin plating, it offers reliable signal integrity up to 33 Gbps. With multiple stack heights and a robust construction, this connector ensures secure, long-lasting connections in high-frequency systems. Perfect for data transfer, industrial electronics, and high-performance applications, this product supports RoHS compliance and high cycle counts. Purchase online now to enhance your electronic system’s performance and reliability with this advanced, durable connector.
Buy Samtec QTH-060-07-F-D-A now and experience unmatched reliability and high-speed performance for your industrial connectivity needs.
Frequently Asked Questions
Where can I buy SAMTEC QTH06001LDATR?
You can click on the BUY or RFQ button to purchase QTH06001LDATR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QTH06001LDATR?
You can download the QTH06001LDATR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QTH06001LDATR?
SAMTEC
