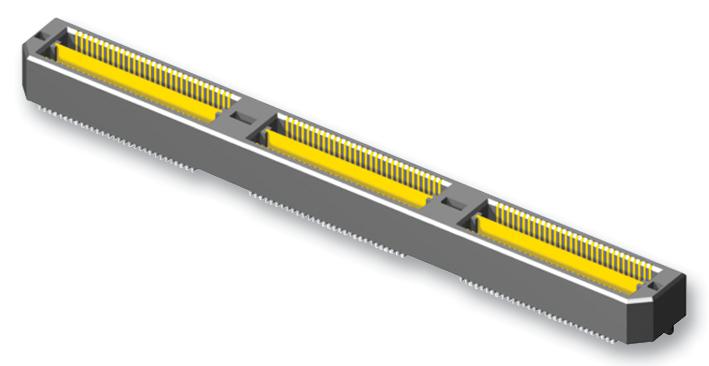

SAMTEC QTH06004LDA High-Speed Industrial Connector
The QTH-060-07-F-D-A is a high-reliability connector with an integral metal plane for power or ground connections, designed for PCB applications. It features liquid crystal polymer insulation, phosphor bronze terminals, and gold or tin plating over nickel, ensuring excellent conductivity and corrosion resistance. Built for demanding environments, this connector supports voltage ratings up to 125 VAC with a temperature range from -55°C to +125°C. Suitable for SMT processes, it offers multiple stack heights and pin configurations, with RoHS compliance and lead-free solderability, making it ideal for industrial and electronic applications requiring durable, high-speed data transfer.
SAMTEC QTH06004LDA High-Speed Industrial Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni (50y or 0.76 μm gold)
- Current Rating: Not specified
- Voltage Rating: 125 VAC
- Operating Temperature Range: -55°C to +125°C
- Stack Heights: 5 mm, 15 mm, 22 mm, 30 mm
- Number of Pairs per Row: 80, 120, 150
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm to 0.15 mm
- Max Pin Count: 60 total pins per bank
- Performance Data: Up to 19 GHz / 33 Gbps depending on configurations
- Process Compatibility: Suitable for automated placement, inspection, and high-speed data applications
Buy the Samtec QTH060-07-F-D-A Reliable Industrial Power and Signal Connector
Order the Samtec QTH060-07-F-D-A connector online today and benefit from advanced design with integral metal plane, high pin count options, and excellent thermal performance. This connector is perfect for robust industrial and electronic systems requiring high-speed data transmission and reliable power connections. Its compatibility with SMT processes, RoHS compliance, and lead-free construction ensure easy integration into modern manufacturing workflows. Get durable, high-performance connectivity solutions that deliver excellent performance and longevity in demanding environments. Purchase now for fast delivery and expert support.
Buy Samtec QTH060-07-F-D-A now and experience unmatched reliability and high-speed data transfer for industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC QTH06004LDA?
You can click on the BUY or RFQ button to purchase QTH06004LDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QTH06004LDA?
You can download the QTH06004LDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QTH06004LDA?
SAMTEC
