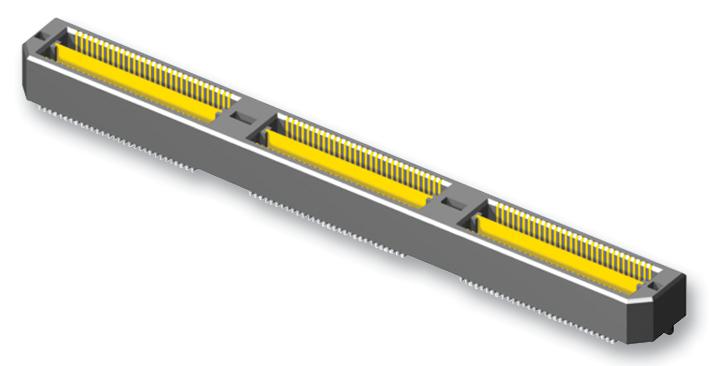

SAMTEC QTH09002LDAKTR High-Speed Data Connector
The QTH series is a versatile, high-performance connector designed for industrial and electronic applications. It features a liquid crystal polymer insulator, phosphor bronze terminals with gold or tin plating over nickel, and a current rating suitable for 125 VAC. With various stack heights from 5 mm to 30 mm, it offers excellent signal integrity for high-speed data transmission up to 19 Gbps, supporting differential and single-ended signaling. The connector complies with RoHS and is lead-free, suitable for surface-mount applications, providing exceptional mechanical and electrical reliability in demanding environments.
SAMTEC QTH09002LDAKTR High-Speed Data Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50µ
- Current Rating: 125 VAC
- Operating Temperature Range: -55°C to +125°C
- Voltage Rating: 125 VAC
- Stack Height Options: 5 mm, 15 mm, 22 mm, 30 mm
- Gold Plating: 30µ" (0.76 µm)
- Max Signal Frequency: 19 Gbps with differential signaling
- Supports edge mount, guide posts, retention options
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable, SMT Lead Coplanarity 0.10 mm
- Number of Positions: Up to 150 per row
- Connector Style: Board-to-board, cable mate options
- Applications: High-speed data, industrial electronics, interconnect systems
Buy the Samtec QTH09002LDA – Reliable High-Speed Data Connector for Industrial Applications
Enhance your electronic systems with the high-speed data connector designed for industrial and high-performance applications. Featuring liquid crystal polymer insulation, phosphor bronze terminals, and gold or tin plating over nickel, this connector supports data rates up to 19 Gbps with differential signaling. Its robust design includes various stack heights, RoHS compliance, and lead-free processing for durability and environmental safety. Perfect for PCB mounting, cable, and board-to-board connections, ensuring reliable performance in demanding environments and facilitating seamless high-frequency data transfer.
Buy Samtec QTH09002LDA now and experience unmatched reliability and performance for high-speed signal transmission in industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC QTH09002LDAKTR?
You can click on the BUY or RFQ button to purchase QTH09002LDAKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QTH09002LDAKTR?
You can download the QTH09002LDAKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QTH09002LDAKTR?
SAMTEC
