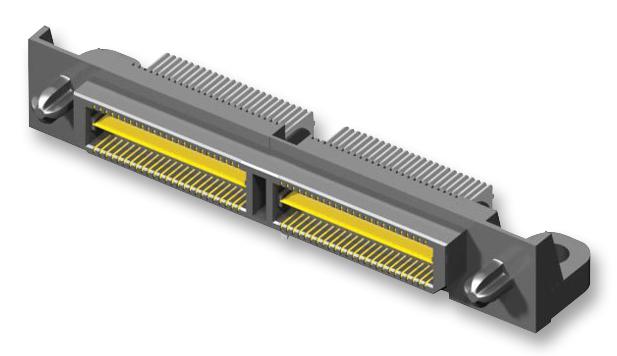

SAMTEC QTS07501FDRAWT High-Speed Interconnect Connector
The QTS series provides high-performance interconnect solutions with a liquid crystal polymer insulator and phosphor bronze contacts plated with 30" Au for reliability. Designed for applications requiring multiple connectors per board, it supports up to 100 positions per row with differential pair signaling up to 8.5 GHz. Rated for 285 VAC and operating from -55°C to +125°C, these connectors feature lead-free solderability, low insertion loss, and compatibility with automatic placement machines. Ideal for demanding applications in data, communications, and industrial equipment.
SAMTEC QTS07501FDRAWT High-Speed Interconnect Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: 30" Gold
- Current Rating: 1.8 A per pin, 7.8 A per ground plane
- Voltage Rating: 285 VAC
- Operating Temp: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Number of Positions per Row: 50, 100, or 125
- Stack Height Options: 11 mm & 16 mm
- Insertion Loss: Rated @ 308 Insertion Loss*
- Signaling: Single-Ended (9 GHz/18 Gbps), Differential Pair (8.5 GHz/17 Gbps)
- Board Spacing and Alignment: Compatible with various standoffs and PCB layouts
- Certifications: RoHS Compliant
- Process Compatibility: Suitable for automatic placement and inspection machines
Buy the Samtec QTS07501FDRAWT – Reliable High-Speed Connector for Industrial Applications
Order the High-Speed Interconnect Connector online today and ensure your industrial or data communication systems operate with maximum reliability. Featuring gold plating for superior contact performance, rated for 285 VAC, with support for up to 100 positions per row, and operating across a broad temperature range from -55°C to +125°C. It is RoHS compliant, lead-free, and designed for automatic placement. Perfect for demanding applications requiring minimal insertion loss, high-speed data transfer, and robust performance in challenging environments.
Get Samtec QTS07501FDRAWT today—built for precision, high-speed data transfer, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC QTS07501FDRAWT?
You can click on the BUY or RFQ button to purchase QTS07501FDRAWT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QTS07501FDRAWT?
You can download the QTS07501FDRAWT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QTS07501FDRAWT?
SAMTEC
