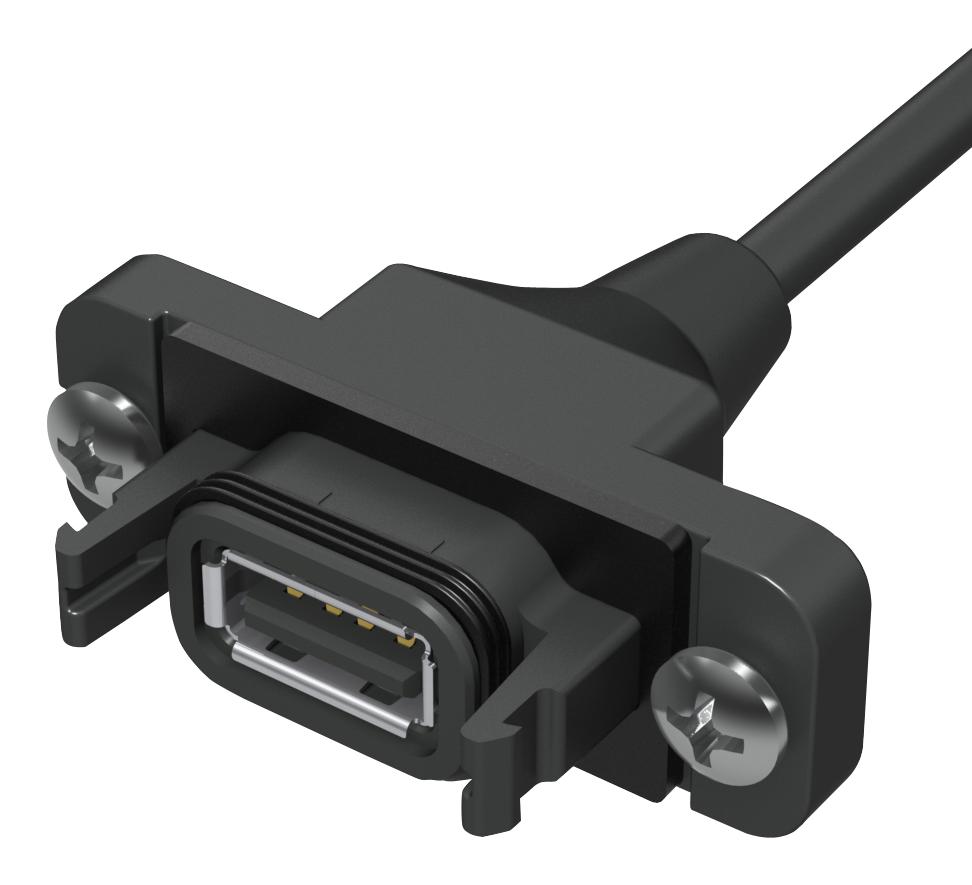

SAMTEC RPCUG0050AMSAM Sealed USB Panel Mount Connector
The product is an IP6S sealed USB panel mount connector designed for rugged environments, featuring a Liquid Crystal Polymer insulator, phosphor bronze contact material, and a black silicone seal. It supports operating temperatures from -20°C to +80°C, with a current rating of 2 A per pin for powered connections. The connector is lead-free, solderable, and compatible with various wire gauges including 30 AWG power, 25 AWG signal, and 28 AWG drain wires. It mates with Samtec’s RPCU series, ensuring secure, high-quality electrical connections for industrial and electronic applications.
SAMTEC RPCUG0050AMSAM Sealed USB Panel Mount Connector Specifications:
- Material: Liquid Crystal Polymer insulator, phosphor bronze contacts
- Sealing: Silicone
- Current Rating: 2 A per pin
- Operating Temp Range: -20°C to +80°C
- Lead-Free: Yes
- Solderable: Yes
- Wire Gauge Compatibility: 30 AWG (Power), 25 AWG (Signal), 28 AWG (Drain)
- Connector Length: 42.8 mm (1.69 inches)
- Sealed: Yes, IP6S rated
- Contact Material: Phosphor Bronze
- Shield Material: Standard lengths, not sealed
- Insulator Material: Liquid Crystal Polymer
- Cable Outer Diameter: 9.84 inches
- Manufactured to: Samtec specifications with customer-specific requirements approved independently
Buy the Buy Samtec RPCUG0050AMSAM Part Number RPCUG0050AMSAM Online
Purchase the Samtec RPCUG0050AMSAM sealed USB panel mount connector online today. Designed for industrial environments, it features Liquid Crystal Polymer insulation, phosphor bronze contacts, and a silicone seal for IP6S protection. Supports operating temperatures from -20°C to +80°C, with a current rating of 2 A per pin. Compatible with various wire gauges including 30 AWG power, 25 AWG signal, and 28 AWG drain wires. Solderable, lead-free, and engineered for secure, high-quality electrical connections in critical applications.
Get Samtec RPCUG0050AMSAM today—built for rugged sealed connections and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC RPCUG0050AMSAM?
You can click on the BUY or RFQ button to purchase RPCUG0050AMSAM from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part RPCUG0050AMSAM?
You can download the RPCUG0050AMSAM datasheet or visit the SAMTEC website for support.
Who is the manufacturer of RPCUG0050AMSAM?
SAMTEC
