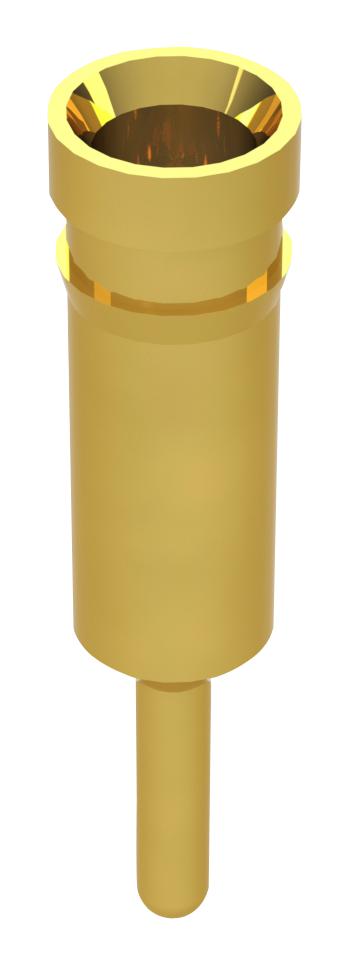

SAMTEC SC1P4GT Low-Profile Electronic Connector
The SC-1P4-GG is a professional-grade low-profile electronic connector designed for compact PCB applications. It features gold and nickel plating for corrosion resistance and durability. The connector offers an insertion depth of 0.080 to 0.150 inches, supporting lead diameters of 0.016 to 0.020 inches. With reliable contact resistance below 0.020 ohms, it ensures stable electrical connections. Perfect for high-density interconnections, it supports various plating options including GG, GT, and TT. Its sturdy construction and precise dimensions make it suitable for a wide range of electronic devices and industrial systems.
SAMTEC SC1P4GT Low-Profile Electronic Connector Specifications:
- Plating: Au over 50u inch (1.27 um), Ni on contact, Sn over 50u inch (1.27 um), GG, GT, TT options
- Contact Resistance: below 0.020 ohms
- Insertion Force: less than 3 oz (0.83 N) on average, up to 6.5 oz (1.81 N) maximum
- Withdrawal Force: average 3 oz (0.83 N), minimum 2 oz (0.56 N)
- Insertion Depth: 0.080 to 0.150 inches (2.03 mm to 3.81 mm)
- Lead Dia Accepted: 0.016 to 0.020 inches (0.41 mm to 0.51 mm)
- Dimensions: Diameter options 0.051 inch (1.30 mm) to 0.071 inch (1.80 mm)
- Material: Aluminum with plating options, precision-molded for durability
- Compatibility: Supports various plating options and sizes for versatile connections
- Electrical Rating: Meets industry standards for high-reliability electronic connections
Buy the Samtec SC-1P4-GG – Reliable Low-Profile Connector for Industrial Applications
Purchase the Samtec SC-1P4-GG low-profile connector online today and enhance your electronic designs with a reliable, high-quality interconnect solution. Featuring gold and nickel plating for corrosion resistance, it supports lead diameters from 0.016 to 0.020 inches and offers insertion depths between 0.080 and 0.150 inches. Its robust construction ensures durable connections for high-density PCB applications. Ideal for industrial, consumer electronics, and automation projects, this connector guarantees stable electrical performance, ease of installation, and adaptability to various specifications—all available for quick online ordering.
Order your Samtec Series SC-1P4-GG low-profile connector today and give your projects the dependable quality they deserve, ideal for compact electronic assemblies and industrial systems.
Frequently Asked Questions
Where can I buy SAMTEC SC1P4GT?
You can click on the BUY or RFQ button to purchase SC1P4GT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SC1P4GT?
You can download the SC1P4GT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SC1P4GT?
SAMTEC
