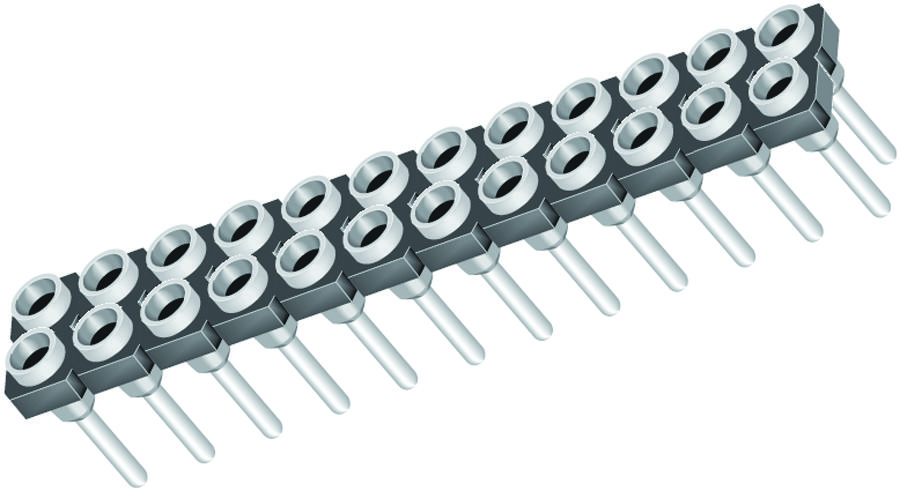

SAMTEC SDL102T10 Socket Strip
The SDL series from Samtec features low profile double-row screw machine socket strips designed for space-efficient applications in industrial environments. These vertical through-hole sockets with a 2.54mm pitch are compatible with various Samtec connectors, offering options with 1 to 36 contacts per row and four precision screw-machined lead styles. Made from black glass-filled polyester insulators, their contacts are crafted from beryllium copper within a machined brass shell, ensuring a contact resistance of 10 milliohms. Operable from -55°C to 125°C, with gold or tin plating, they meet UL standards, providing reliable performance in demanding settings.
SAMTEC SDL102T10 Socket Strip Specifications:
- Pitch spacing: 2.54mm (0.100")
- Contacts: 1 to 36 per row, machined screw style
- Material: Black glass-filled polyester insulator
- Contact Material: Beryllium copper with gold or tin plating
- Shell Material: Machined brass
- Contact Resistance: 10 milliohms
- Operating Temperature Range: -55°C to +125°C
- Plating Options: 30 micron gold or tin over nickel
- Number of contacts per row: 1-36
- Mounting Style: Vertical through-hole
- Standards: UL E111594 compliant
- Application: Industrial, electronic assembly
Buy the Samtec Series SDL Socket Strip: SDL102T10
Purchase your Samtec SDL series socket strips online today and benefit from high-quality, reliable connectors designed for demanding industrial environments. These low profile, space-efficient socket strips feature black glass-filled polyester insulators, machined brass shells, and beryllium copper contacts with gold or tin plating. Suitable for various high-temperature applications, they offer excellent electrical performance with a contact resistance of just 10 milliohms. Easy to assemble, UL certified, and compatible with numerous Samtec connector series, order now to ensure your project’s success.
Order your Samtec SDL series socket strips today and enhance your electronic projects with dependable, space-saving connector solutions.
Frequently Asked Questions
Where can I buy SAMTEC SDL102T10?
You can click on the BUY or RFQ button to purchase SDL102T10 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SDL102T10?
You can download the SDL102T10 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SDL102T10?
SAMTEC
