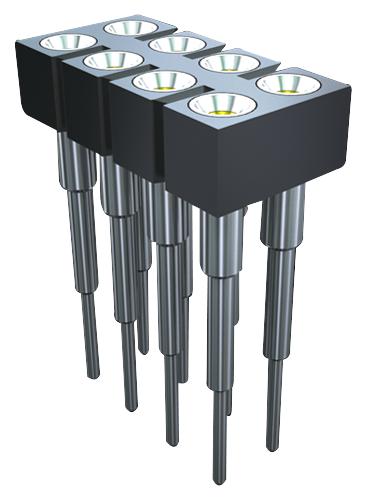

SAMTEC SDL109G12 Socket Strip
The SDL series from Samtec consists of low-profile, double-row screw machine socket strips designed for through-hole mounting. These socket strips are compatible with Samtec's TS, TD, HTS, BBS, BBD, BBL, BDL, and BHS series connectors. They feature a 2.54mm pitch spacing (ranging from 1 to 36 contacts per row) with a vertical orientation. Made with a black glass-filled polyester insulator, these sockets support high operating temperatures from -55°C to 125°C with 30μ” gold-plated contacts. The contacts are crafted from beryllium copper housed in machined brass shells, with a contact resistance of 10 milliohms. They comply with UL standard E111594 and are suitable for industrial applications.
SAMTEC SDL109G12 Socket Strip Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact/Shell Materials: BeCu/Brass
- Plating: Au or Sn over 50μ” (1.27 μm) Ni
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Force: Standard = 90z (2.50 N) average, 16 oz (4.45 N) max (0.43 mm) .017" DIA probe; Low Force = 25 oz (0.70 N) average, 5.5 oz (1.53 N) max (0.43 mm) .017" DIA probe
- Withdrawal Force: Standard = 2.5 oz (0.70 N) average, 1.5 oz (0.42 N) min (0.43 mm) .017" DIA probe; Low Force = 2.0 oz (0.56 N) avg., 0.5 oz (0.14 N) min
- RoHS Compliance: Yes
- Lead-Free Solderable: Wave only
