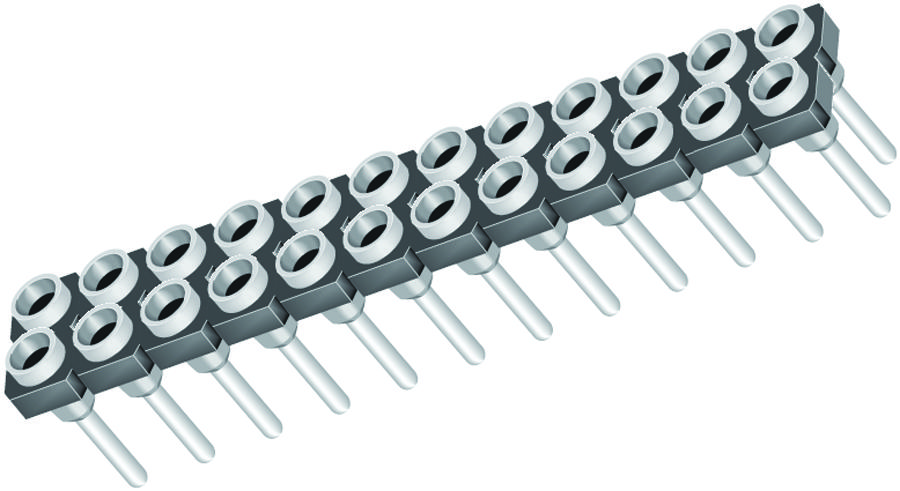

SAMTEC SDL110G12 Socket Strip
The SDL series from Samtec features low-profile, double-row screw machine socket strips ideal for through-hole mounting. Designed with a 2.54mm pitch and operating temperature from -55°C to 125°C, these connectors have gold or tin plating over 50µ” Ni for reliable contact. Built with a black glass-filled polyester insulator, they support 1 to 36 contacts per row and are compatible with Samtec's TS, TD, HTS, BBS, BBD, BBL, BDL, and BHS series connectors. The contacts are machined from BeCu/Brass, ensuring low contact resistance of 10 milliohms. Perfect for industrial applications, they meet UL and RoHS standards.
SAMTEC SDL110G12 Socket Strip Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact/Shell Materials: BeCu/Brass
- Plating: Au or Sn over 50µ” Ni
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Force: Standard 90 oz (2.50 N) avg., 16 oz (4.45 N) max; Low Insertion Force 25 oz (0.70 N) avg., 5.5 oz (1.53 N) max
- Withdrawal Force: Standard 2.5 oz (0.70 N) avg., min 1.5 oz (0.42 N); Low Insertion Force 2.0 oz (0.56 N) avg., min 0.5 oz (0.14 N)
- Pitch spacing: 2.54mm
- Contact counts: 1 to 36 per row
- RoHS and UL certified
Buy the Buy Samtec SDL Series Part Number SDL110G12 Online
Secure your industrial applications with Samtec SDL series socket strips, designed for durability and precision. With a 2.54mm pitch and support for up to 36 contacts, these connectors are gold or tin plated for long-lasting reliability. Made from black glass-filled polyester with machined BeCu/Brass contacts, they operate effectively from -55°C to 125°C. Suitable for through-hole mounting, they meet UL and RoHS standards, making them ideal for demanding industrial environments. Purchase online today for quick delivery and dependable performance.
Order your Samtec SDL110G12 series low-profile socket strips today and ensure reliable, industrial-grade connections for your projects.
Frequently Asked Questions
Where can I buy SAMTEC SDL110G12?
You can click on the BUY or RFQ button to purchase SDL110G12 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SDL110G12?
You can download the SDL110G12 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SDL110G12?
SAMTEC
