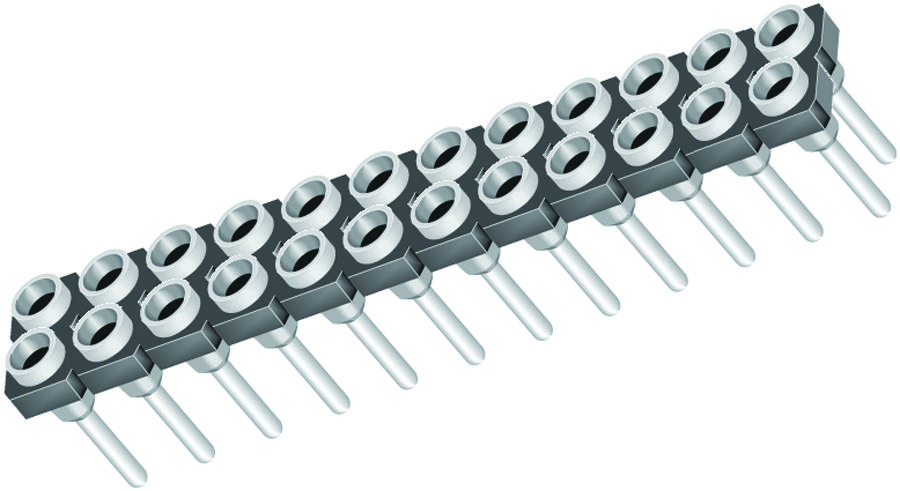

SAMTEC SDL112T10 Socket Strip
The SDL series from Samtec are low-profile, double-row socket strips ideal for through-hole mounting in industrial applications. Constructed with a black glass-filled polyester insulator and beryllium copper contacts plated in gold, these connectors support temperature ranges from -55°C to 125°C. They feature a 2.54mm pitch, four precision screw machined lead styles, and are compatible with various Samtec connector series such as TS, BBL, and BDL. Their high-quality design offers low contact resistance of 10 milliohms, ensuring reliable electrical performance and durability in demanding environments.
SAMTEC SDL112T10 Socket Strip Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact/Shell Materials: BeCu/Brass
- Plating: Au or Sn over 50y" (1,27 um) Ni
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Force: Standard 16 oz (4.45 N) max., Low Force 5.5 oz (1.53 N) max.
- Withdrawal Force: Standard 2.5 oz (0.70 N) avg., Low Force 0.5 oz (0.14 N) min.
- Dimensions: Pitch 2.54mm, contact diameter 0.43mm, insertion depth up to 1.80mm, compatible with multiple contact styles
- RoHS Compliant: Yes
- Lead-Free Solderable: Wave only
- Designed for precision applications with four screw machined lead styles and high-temperature tolerance.
Buy the Samtec Series SDL: Low-Profile Socket Strips with Gold-Plated Contacts
Purchase the Samtec SDL series socket strips online today for reliable and high-performance connections. These low-profile, precision-engineered socket strips feature gold-plated contacts, supporting a wide temperature range from -55°C to 125°C. Ideal for industrial and electronic applications requiring durable through-hole mounting. With various lead styles and a pitch of 2.54mm, they ensure secure, low-resistance connections. Order now to benefit from fast shipping and experienced customer support, ensuring your project’s success with quality components.
Get Samtec SDL series low-profile socket strips today—built for precision and long-lasting durability in industrial electronics.
Frequently Asked Questions
Where can I buy SAMTEC SDL112T10?
You can click on the BUY or RFQ button to purchase SDL112T10 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SDL112T10?
You can download the SDL112T10 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SDL112T10?
SAMTEC
