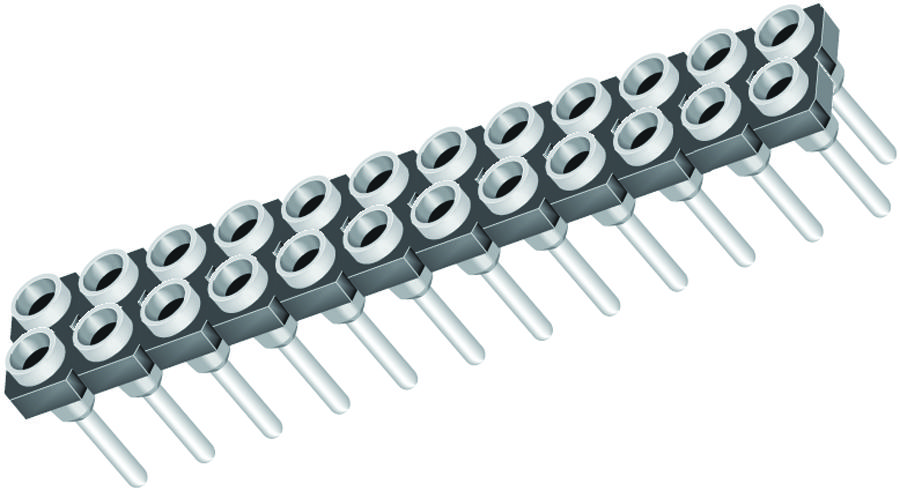

SAMTEC SDL120T10 Socket Strip
The SDL series from Samtec features low-profile double-row socket strips designed for through-hole mounting applications. Constructed with black glass-filled polyester insulators, these sockets are compatible with various Samtec connectors like TS, TD, HTS, BBS, BBD, BBL, BDL, and BHS series. They feature a 2.54mm pitch, support 1 to 36 contacts per row, and are designed with hollow-leg, low-profile lead styles. With a high operating temperature range of -55°C to 125°C, gold-plated contacts of 30µ” thickness, and contact resistance of 10 milliohms, they meet UL standards and suit industrial needs.
SAMTEC SDL120T10 Socket Strip Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact Material: BeCu/Brass
- Plating: Au or Sn over 50µ” Ni
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Force: 9 oz (standard), 25 oz (low force)
- Withdrawal Force: 2.5 oz (standard), 2 oz (low force)
- Lead Style: Hollow leg, low profile
- Pitch Spacing: 2.54mm
- Number of Contacts: 1 to 36 per row
- Compliance: RoHS
- Mounting: Through-hole
- Compatibility: Samtec TS, TD, HTS, BBS, BBD, BBL, BDL, BHS series
Buy the Samtec Series SDL: Socket Strip for Through-Hole Mounting - Part SDL120T10
Purchase the Samtec Series SDL socket strip online today to benefit from high-quality, low-profile design with a 2.54mm pitch, compatible with multiple series. Featuring gold-plated contacts, black glass-filled polyester insulators, and wide operating temperature range, these sockets offer reliable, industrial-grade performance. Perfect for PCB connections requiring durable, high-temperature components, they support 1 to 36 contacts per row. Order now for fast delivery and ensure your projects are supported by top-tier connectors designed for demanding environments.
Order your Samtec Series SDL socket strip today and give your projects the dependable quality they deserve with high-temperature, low-profile reliability.
Frequently Asked Questions
Where can I buy SAMTEC SDL120T10?
You can click on the BUY or RFQ button to purchase SDL120T10 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SDL120T10?
You can download the SDL120T10 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SDL120T10?
SAMTEC
