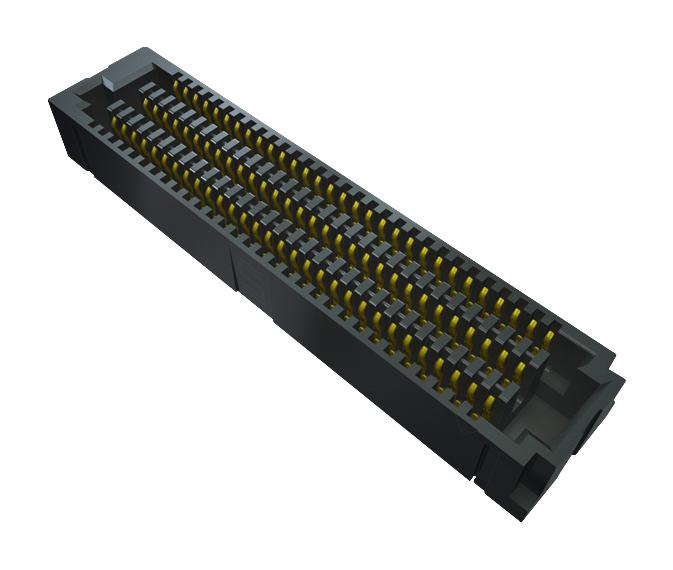

SAMTEC SEAF20050S081AKTR High-Density Open-Pin Array Connector
The SEAF20050S081AKTR is a high-density open-pin-field array connector featuring a 1.27 mm pitch, rugged Edge Rate contacts, and versatile design options including right-angle and press-fit variants. It supports high-speed protocols such as Ethernet, PCI Express, Fibre Channel, and InfiniBand, with maximum grounding and routing flexibility for complex electronic assemblies. Suitable for applications requiring 560 single-ended I/Os or 140 differential pairs, it offers excellent power and signal management, making it ideal for advanced communication, computing, and military systems.
SAMTEC SEAF20050S081AKTR High-Density Open-Pin Array Connector Specifications:
- Pitch: 1.27 mm (0.050 inch)
- Contact Material: Copper Alloy with Au or Sn coating
- Operating Temperature Range: -55°C to +125°C
- Voltage Rating: 240 VAC
- Material: Black LCP
- Stack Height: 7 mm
- Current Rating: 2.7 A per pin
- Solderable: Yes
- Standards Supported: VITA 47, VITA 57.1, VITA 57.4, VITA 74, PISMO 2, EON VNX
- Maximum I/Os: 560 single-ended or 140 differential pairs
- Compatible with power/signal flexibility options like UMPT/UMPS
- Features rugged Edge Rate contacts and multiple design options including guide posts, elevated risers, and tuned configurations
- Supports high-speed protocols including Ethernet, PCI Express, Fibre Channel, InfiniBand
- Applications include high-performance communication, data centers, military, aerospace electronics
Buy the Buy Samtec SEAF20050S081AKTR Part Number SEAF20050S081AKTR Online
Purchase the Samtec High-Density Open-Pin Array Connector today for reliable high-speed data transmission and flexible configurations. Designed with rugged Edge Rate contacts and supporting protocols like Ethernet and PCI Express, it provides maximum grounding and routing flexibility for demanding electronic applications. Suitable for up to 560 single-ended I/Os, it features a 1.27 mm pitch, various mounting options including right-angle and press-fit, ensuring excellent power and signal integrity in communication, data center, and military systems. Order now to enhance your electronic design.
Get Samtec SEAF20050S081AKTR today—built for high-speed data transfer and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC SEAF20050S081AKTR?
You can click on the BUY or RFQ button to purchase SEAF20050S081AKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SEAF20050S081AKTR?
You can download the SEAF20050S081AKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SEAF20050S081AKTR?
SAMTEC
