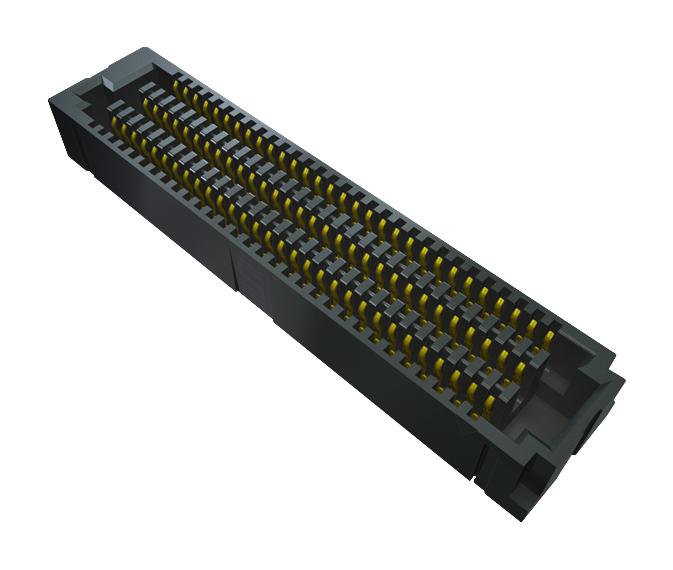

SAMTEC SEAF20065S042AKTR High-Density Open-Pin-Field Arrays
The SEAF Open-Pin-Field Arrays are high-density connectors with a 1.27 mm pitch, supporting high-speed protocols like Ethernet, PCI Express, Fibre Channel, and InfiniBand. They offer maximum grounding and routing flexibility, with rugged Edge Rate contacts and various design options including right-angle, guide posts, and elevated risers. Suitable for power and signal applications, they meet standards such as VITA and PISMO, with features supporting differential pairs and single-ended I/Os, making them ideal for complex electronic systems requiring reliable, high-speed connectivity.
SAMTEC SEAF20065S042AKTR High-Density Open-Pin-Field Arrays Specifications:
- Pitch: 1.27 mm (.050 inch)
- Supports up to 560 single-ended I/Os or 140 differential pairs
- Material: Copper Alloy with Au or Sn over finishing
- Operating Temperature Range: -55°C to +125°C
- Voltage Rating: 240 VAC
- Mating Height: 7 mm stack height
- Standards: VITA 47, VITA 57.1, VITA 57.4, VITA 74, PISMO 2
- Various design options include Right-Angle, Guide Posts, Elevated Risers
- Supports high-speed data transfer protocols
- Compatible with power/signal flexibility modules
- Contacts: Rugged Edge Rate, gold or matte tin on contact
- Connector Style: Open-pin, open-field array with multiple configurations
- Series Options: SEAF, SEAFP, JSO standoffs
- Contact Termination: Solder, press-fit, or guide post options
- Application: Advanced electronics requiring high-speed, flexible connectivity
Buy the Buy High-Speed Connectivity Component Part Number SEAF20065S042AKTR Online
Order the high-density open-pin-field arrays SEAF20065S042AKTR online today for superior connectivity in high-speed electronic systems. These connectors support protocols like Ethernet and PCI Express, offering maximum grounding and routing flexibility with rugged Edge Rate contacts and multiple design options including right-angle, guide posts, and elevated risers. Suitable for power and signal applications, they meet industry standards such as VITA and PISMO, ensuring compatibility and reliable performance in complex, demanding environments. Get your system connected efficiently with this versatile and durable connector series.
Buy Samtec high-density open-pin-field arrays SEAF20065S042AKTR now and enhance your electronic systems with reliable, high-speed connectivity and flexible design options.
Frequently Asked Questions
Where can I buy SAMTEC SEAF20065S042AKTR?
You can click on the BUY or RFQ button to purchase SEAF20065S042AKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SEAF20065S042AKTR?
You can download the SEAF20065S042AKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SEAF20065S042AKTR?
SAMTEC
