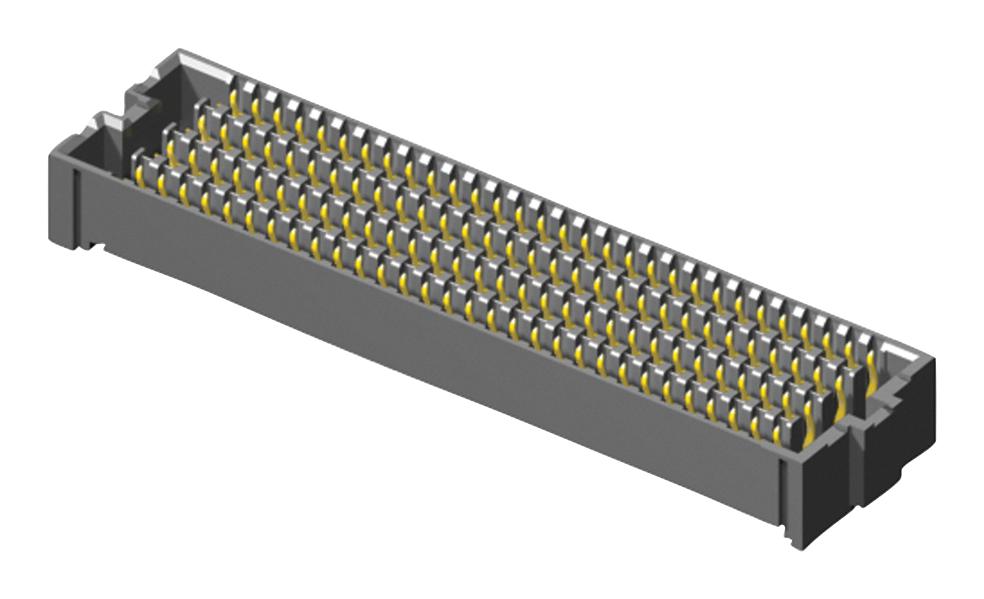

SAMTEC SEAF30050S082AKTR Open-Pin Field Array Connector
The SEAF30050S082AKTR is a high-density open-pin-field array connector designed for maximum grounding and routing flexibility. It supports up to 560 single-ended I/Os or 140 differential pairs, with rugged Edge Rate contacts and multiple design options including right-angle and press-fit configurations. Suitable for high-speed protocols like Ethernet, PCI Express, Fibre Channel, and InfiniBand, it features reliable solder charges, a 7 mm stack height, and full compliance with industry standards such as VITA 47 and VITA 57.1. Its durable construction ensures high mating cycles and versatile application support.
SAMTEC SEAF30050S082AKTR Open-Pin Field Array Connector Specifications:
- Pitch: 1.27 mm (.050")
- Number of positions: 85
- Material: Black LCP, Copper Alloy
- Contact Material: Gold on contact, Solderable
- Working Temperature Range: -55°C to +125°C
- Voltage Rating: 240 VAC
- Stack Height: 7 mm
- Standards: VITA 47, VITA 57.1, VITA 57.4, VNX, PISMO™ 2
- Durability: Supports high mating cycles
- Rated for high-speed protocols including Ethernet, PCI Express, Fibre Channel & InfiniBand
- Design Options: Right-Angle, Guide Posts, Elevated Risers, Press-Fit, and Field Termination Kits
- Compatibility: Supports SEAC Series cable mates and JSO Series standoffs
- Environmental Compliance: RoHS compliant
- Application: High-density electronic system interconnections, networking, and data transfer
- Connector Type: Open-pin-field array with rugged Edge Rate contacts
Buy the High-Density Series Open-Pin-Field Array Connector: SEAF30050S082AKTR
Purchase the Samtec SEAF30050S082AKTR online today to ensure your electronic systems have a high-density, reliable connection solution. Designed for maximum grounding and routing flexibility, this connector supports high-speed protocols like Ethernet, PCI Express, Fibre Channel, and InfiniBand. Its rugged Edge Rate contacts deliver durability with up to 560 single-ended I/Os or 140 differential pairs. Compatible with multiple design options including right-angle and press-fit configurations, it provides excellent versatility and industry-standard compliance for demanding electronic applications.
Buy Samtec SEAF30050S082AKTR high-density open-pin-field array connector now and experience unmatched reliability and performance for your high-speed electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC SEAF30050S082AKTR?
You can click on the BUY or RFQ button to purchase SEAF30050S082AKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SEAF30050S082AKTR?
You can download the SEAF30050S082AKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SEAF30050S082AKTR?
SAMTEC
