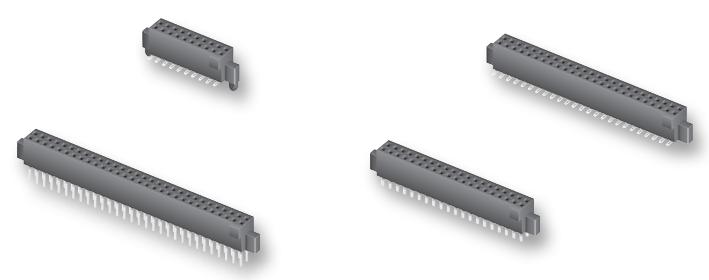

SAMTEC SFM10501LD Micro Pitch Connector
The SFM10501LD is a high-reliability micro pitch connector featuring Tiger Eye contacts designed for surface mount applications. It offers options for locking, screw-down, and high cycle life up to 40,000 cycles. With a 0.050" x 0.050" pitch, it supports both through-hole and surface mount configurations, with materials including Phosphor Bronze and Liquid Crystal Polymer insulators. Rated for 250 VAC, 3.2A per pin, it operates from -55°C to +125°C, ensuring durability in demanding electronic systems.
SAMTEC SFM10501LD Micro Pitch Connector Specifications:
- Pitch: 0.050" x 0.050" (1.27mm x 1.27mm)
- Contact Material: Phosphor Bronze with Au or Sn over Ni plating
- Insulator Material: Black Liquid Crystal Polymer
- Voltage Rating: 250 VAC
- Current Rating: 3.2A per pin
- Operating Temperature Range: -55°C to +125°C
- Locking feature: Optional locking clip or screw-down
- Insertion/Withdrawal Force: Standard 132 g (1.29 N) / 2.0 oz (0.56 N), LIF 90 g (0.88 N) / 1.5 oz (0.42 N)
- Maximum Cycles: 40,000
- Processing: Lead-Free solderable, SMT lead coplanarity 0.10 mm, 0.15 mm max
- Plating options: Au, Sn over Ni, with optional E.L.P. plating
- Tails: 0.015" through-hole tails, or surface mount
- Additional features: Locking, screw down, multiple pin counts, compatibility with TFM mating system.
Buy the Samtec Series SFM Micro Pitch Connector: SFM10501LD
Purchase the Samtec SFM10501LD micro pitch connector online today to ensure your electronic projects benefit from durable, reliable connections. With features like Tiger Eye contacts, optional locking, and high-temperature operation, this connector offers excellent performance and flexibility. Its 0.050" pitch supports surface mount and through-hole configurations, rated for 250 VAC at 3.2A, and withstands up to 40,000 mating cycles. Simplify your assembly process and enhance your system reliability by ordering this advanced connector now.
Buy Samtec SFM10501LD now and experience unmatched reliability and performance with high cycle life and flexible mounting options.
Frequently Asked Questions
Where can I buy SAMTEC SFM10501LD?
You can click on the BUY or RFQ button to purchase SFM10501LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFM10501LD?
You can download the SFM10501LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFM10501LD?
SAMTEC
