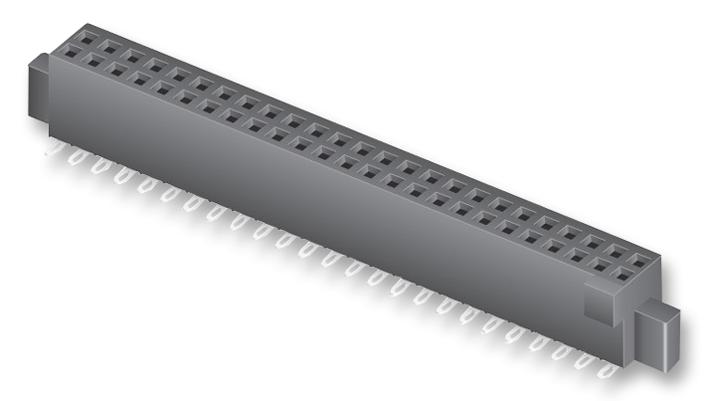

SAMTEC SFM10502SDLC High-Performance SMT Connector
The SFMH series connectors are high-performance, lead-free, SMT-compatible electronic components designed for reliable interconnections in industrial, automotive, and electronic equipment. Made from black liquid crystal polymer insulators with phosphor bronze terminals plated with gold or tin over nickel, these connectors support currents up to 26A per pin, operate across -55°C to +125°C, and feature an insertion depth range of approximately 3.35mm to 5.7mm. Suitable for high-density applications, they comply with RoHS and UL standards, offering versatile pin configurations from 5 to 45 positions for flexible system design.
SAMTEC SFM10502SDLC High-Performance SMT Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au over 50 p" (1.27 um) Ni or Sn over 50 p" (1.27 um) Ni
- Current Rating: 26 A per pin
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 3.35 mm (.132") to 5.7 mm (.180")
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: Max 0.15 mm (.006")
- Number of Pins: 5, 10, 15, 20, 25, 30, 35, 40, 45
- RoHS & UL Compliant: Yes
- Dimensions: Varies based on pin count, with spacing 1.27 mm (.050")
- Certifications: RoHS, UL Listed
Buy the Samlec SFM10502SDLC – Reliable SMT Connector for Industrial Applications
Experience the dependable performance of the Samlec High-Performance SMT Connector, designed for versatile industrial and electronic applications. With a wide range of pin configurations up to 45, this connector supports currents up to 26A per pin and operates efficiently from -55°C to +125°C. Crafted from durable black liquid crystal polymer with gold or tin over nickel plating, it ensures excellent electrical integrity and long-lasting solder connections. Order online today to enhance your system’s reliability and achieve optimal performance in high-density electronic assemblies.
Get Samlec SFM10502SDLC today—built for precision connectivity in demanding industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC SFM10502SDLC?
You can click on the BUY or RFQ button to purchase SFM10502SDLC from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFM10502SDLC?
You can download the SFM10502SDLC datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFM10502SDLC?
SAMTEC
