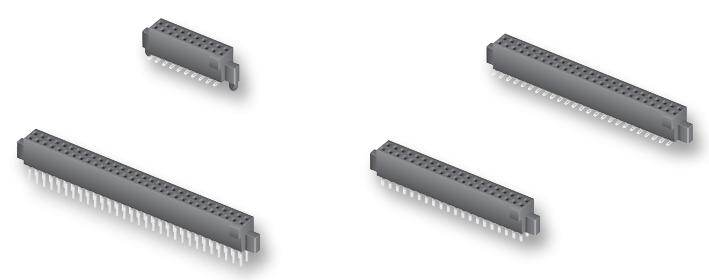

SAMTEC SFM10701SDA Micro Connector
The SFM10701SDA is a high-reliability, low insertion force connector featuring Tiger Eye contacts made of phosphor bronze with gold plating. It supports surface mount or through-hole mounting, with options for locking clips, screw-down features, and different plating choices. Designed for electronics requiring robust connections, it operates within a temperature range of -55°C to +125°C, with a current rating of 3.2A per pin and minimal contact resistance, suitable for applications demanding high durability and reliable mating in compact, micro pitch designs.
SAMTEC SFM10701SDA Micro Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating Options: Gold over Sulfur Organic (SO) or other platings
- Operating Temp Range: -55°C to +125°C
- Current Rating: 3.2A per pin
- Voltage Rating: Not specified but suitable for high-reliability circuitry
- Insertion Depth: 4.06 mm (0.160") with extended life option
- Contact Resistance: Very low, increases with unmating
- Mounting Options: Surface mount or through-hole
- Contact Style: Tiger Eye™ LITE contacts
- Terminals: Compatible with TFM series and other mating components
- Additional features: Locking clip, screw down feature, multiple pin counts from 5 to 50
- Insulator Material: Black Liquid Crystal Polymer
- Dimensions: Micro pitch 0.050" x 0.050", Tail length varies based on configuration
Buy the Samtec Series SFM: High-Precision Micro Connector: SFM10701SDA
Enhance your electronic assemblies with the high-reliability Micro Connector designed for PCB surface mount or through-hole applications. Featuring Tiger Eye contacts made of phosphor bronze with gold plating, it supports up to 3.2A per pin and operates across a wide temperature range from -55°C to +125°C. Its compact, micro pitch design ensures precise, secure connections for demanding projects. Available with locking clips, screw-down options, and various pin counts, order online today for fast delivery and dependable performance!
Order your Samtec Series SFM SFM10701SDA today and ensure high-reliability, low force, and secure connections for your advanced electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SFM10701SDA?
You can click on the BUY or RFQ button to purchase SFM10701SDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFM10701SDA?
You can download the SFM10701SDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFM10701SDA?
SAMTEC
