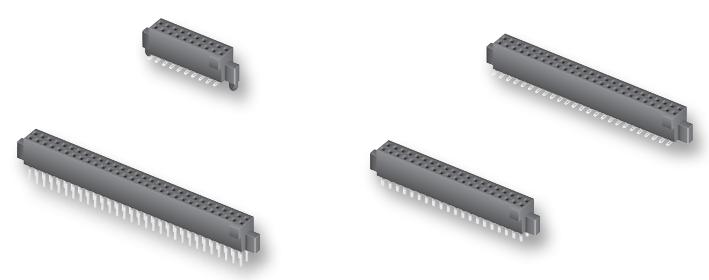

SAMTEC SFM11001SD High-Density Connector
The SFM11001SD is a high-reliability, low insertion force connector designed for surface mount and through-hole applications, featuring Tiger Eye contacts for enhanced durability. Made from black liquid crystal polymer with options for gold or tin plating over nickel, it supports currents up to 3.2A per pin and operates within a temperature range of -55°C to +125°C. This connector offers extended insertion depth, locking features, and accommodates various sizes and options, making it ideal for high-density, ruggedized electronic assemblies requiring reliable, long-lasting connections.
SAMTEC SFM11001SD High-Density Connector Specifications:
- Material: Black Liquid Crystal Polymer insulator
- Plating options: Au or Sn over 50u" Ni
- Current Rating: 3.2A per pin
- Voltage Rating: 250 VAC
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: specified increases with unmating
- Insertion Depth: 3.05 mm (extended), other sizes available
- Locking feature: Yes, with locking clip or screw down options
- Number of positions: varies from 2 to 30
- Lead Finish: Lead-free solderable options available
- Surface Mount or Through-hole: options for each
- Max Cycles: 40,000
- Pin dimension: 1.27 mm x 1.27 mm, pitch 0.050"
- Durability: Ruggedized design, high reliability with Tiger Eye contacts
- Compatibility: Mates with TFM series for coplanar and perpendicular mating
Buy the Samtec Series SFM: Connector SFM11001SD
Purchase the high-reliability Samtec Series SFM11001SD connector online today to enhance your electronic assemblies. This ruggedized connector features Tiger Eye contacts, supporting 3.2A per pin and operating safely within -55°C to +125°C. Ideal for surface mount or through-hole applications, it offers options for gold or tin plating over nickel, locking features, and high cycle durability. With a pitch of 0.050" and multiple size configurations, this connector guarantees secure, long-lasting connections in demanding environments, streamlining your manufacturing process efficiently.
Order your Samtec Series SFM11001SD connector today and ensure long-lasting, reliable connections for your high-density electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SFM11001SD?
You can click on the BUY or RFQ button to purchase SFM11001SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFM11001SD?
You can download the SFM11001SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFM11001SD?
SAMTEC
