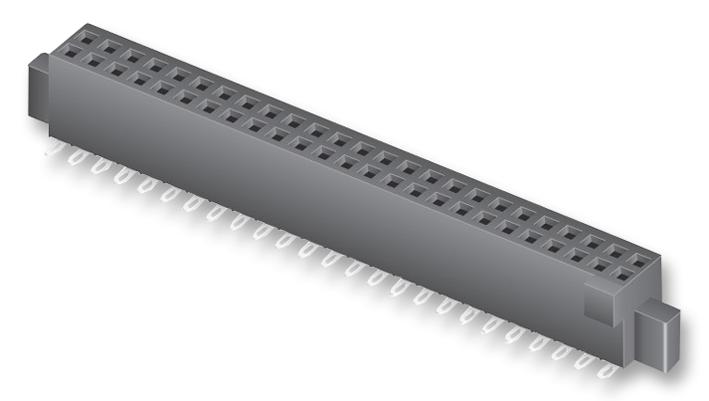

SAMTEC SFM11002SDLC Connector
The SFM-110-02-L-D-SDLC is a ruggedized, high-reliability surface-mount or through-hole connector featuring Tiger Eye contacts with optional gold or tin plating over nickel. It supports operating temperatures from -55°C to +125°C and has a voltage rating of 250 VAC. The connector is designed for up to 40,000 mating cycles, with multiple locking and screw-down options. It accommodates a wide range of pin counts, with features like low insertion force, contact resistance management, and compatibility with PCBs for industrial applications.
SAMTEC SFM11002SDLC Connector Specifications:
- Plating: Au or Sn over 50u" Ni
- Operating Temp Range: -55°C to +125°C
- Voltage Rating: 250 VAC
- Current Rating: 3.2A per pin
- Insertion Depth: 3.05 mm (Extended life product)
- Locking feature: Yes, with locking clip option
- Connector type: Surface mount or through-hole
- Durability: Passes 40,000 mating cycles
- Material: Black Liquid Crystal Polymer insulator
- Pin count options: 05 to 30 physical positions
- Contact Resistance: minimal, designed for reliable connectivity
- Coatings: Options for gold or tin plating
- Temperature range: -55°C to +125°C
- Max Cycles: 40,000
Buy the Samtec SFM11002SDLC – Reliable Connectors for Industrial Applications
Secure your industrial connections with the high-reliability SFM-110-02-L-D-SDLC connector from Samtec. Designed for rugged environments, it features Tiger Eye contacts, optional gold or tin plating, and supports up to 40,000 mating cycles. Suitable for surface mount or through-hole assembly, it's perfect for demanding applications. Easy to install, with low insertion force and high durability, this connector ensures dependable electrical performance across a wide temperature range (-55°C to +125°C). Order online today for fast delivery.
Buy Samtec SFM11002SDLC now and experience unmatched reliability and performance in your industrial connector solutions.
Frequently Asked Questions
Where can I buy SAMTEC SFM11002SDLC?
You can click on the BUY or RFQ button to purchase SFM11002SDLC from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFM11002SDLC?
You can download the SFM11002SDLC datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFM11002SDLC?
SAMTEC
