SAMTEC SFM12002SDA Micro Connector
The SFM-110-02-L-D-A is a high-reliability, low-insertion-force connector featuring Tiger Eye contacts made of phosphor bronze, capable of withstanding temperatures from -55°C to +125°C. It supports both surface mount and through-hole mounting options, with a current rating of 3.2A per pin and a voltage rating suitable for high-performance applications. The connector includes locking features, optional screw-downs, and supports coplanar and perpendicular mating with reliable contact resistance and multiple plating options, ensuring durability and versatile integration in complex electronic assemblies.
SAMTEC SFM12002SDA Micro Connector Specifications:
- Material: Phosphor Bronze with AuSr over SO plating
- Insulator Material: Black Liquid Crystal Polymer
- Current Rating: 3.2A per pin
- Voltage Rating: suitable for high-performance applications
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 4.06 mm (extended life product)
- Contact Resistance: low contact resistance, increases minimally with unmating
- Mounting Options: Surface mount or Through-hole
- Plating Options: several including Gold over Nickel
- Lead Styles: SMT or Through-hole, with optional locking features
- Number of Pins: varies, supports 5 to 50 pin configurations
- Certification: subject to notices due to ongoing design updates

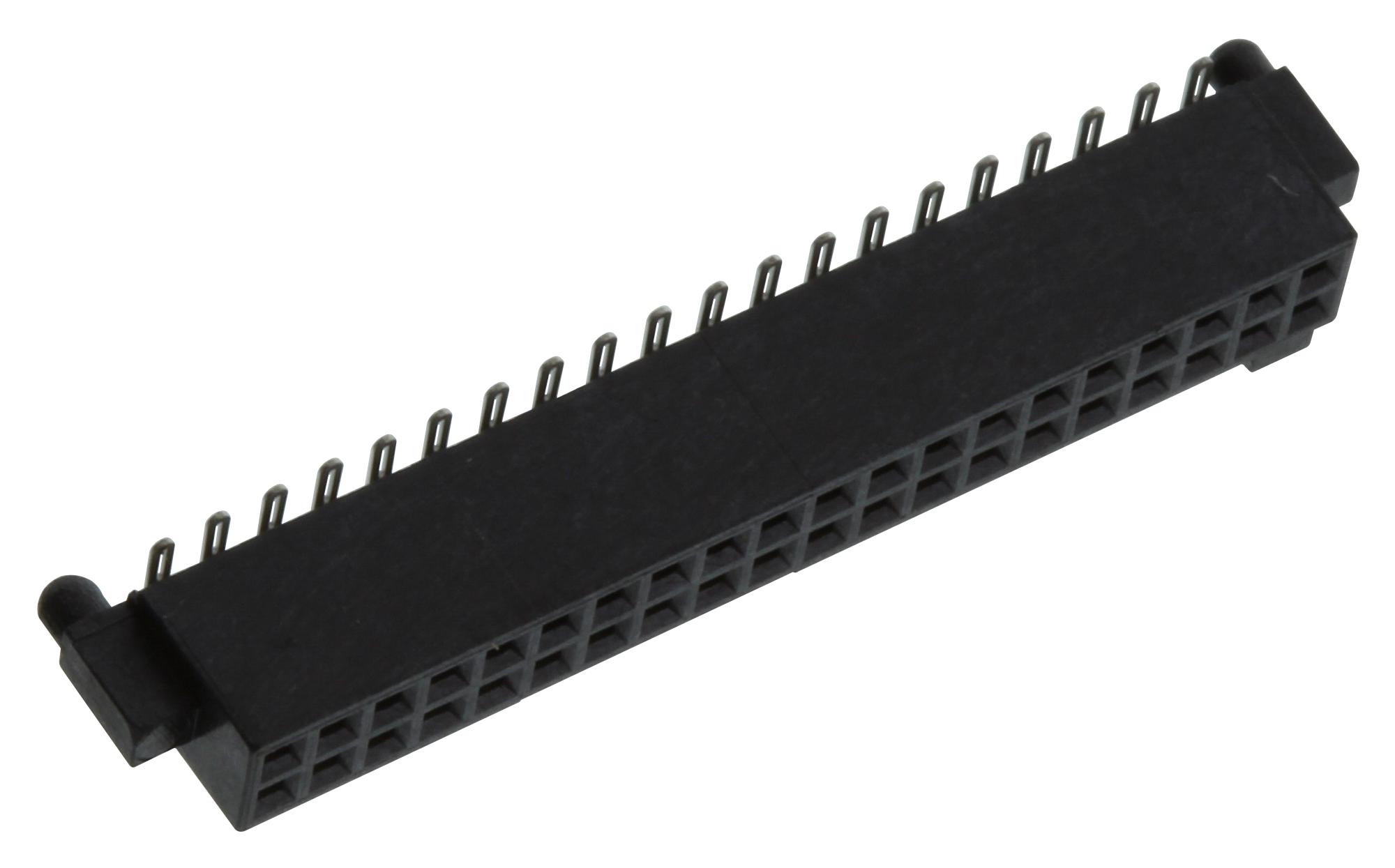

Buy the Buy Samtec SFM-120-02-L-D-A Part Number SFM12002SDA Online
Enhance your electronic projects with the Samtec Micro Connector SFM-120-02-L-D-A, featuring low insertion force Tiger Eye contacts, robust construction, and versatile mounting options. Designed for demanding environments, this connector offers excellent electrical performance, high current capacity, and reliable mating under temperature extremes from -55°C to +125°C. Whether used in surface mount or through-hole configurations, it ensures durability and ease of installation. Order online now for fast delivery and experience dependable, high-quality connections in your assembly or repair projects.
Order your Samtec SeriesSFM-120-02-L-D-A connector today and ensure reliable, high-performance electronic connections with locking and flexible mounting options.
Frequently Asked Questions
Where can I buy SAMTEC SFM12002SDA?
You can click on the BUY or RFQ button to purchase SFM12002SDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFM12002SDA?
You can download the SFM12002SDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFM12002SDA?
SAMTEC
