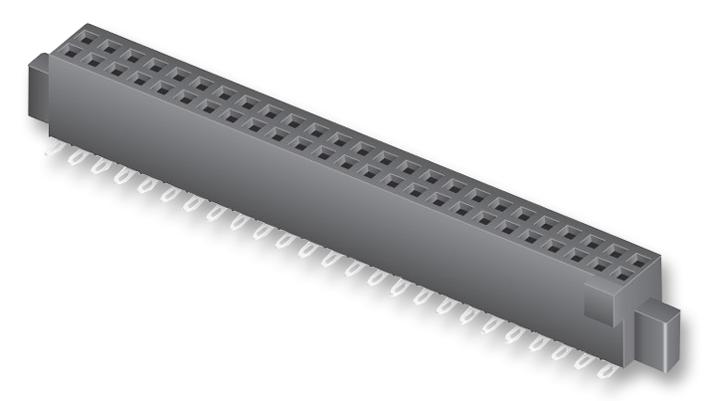

SAMTEC SFM12002SDLCKTR Connector Module
The SFM12002SDLCKTR is a high-reliability, low-insertion-force connector module designed for PCB applications with Tiger Eye contacts made of phosphor bronze. It features both surface mount and through-hole options, with a 1.27 mm pitch and a maximum current rating of 3.2A per pin. It has a wide operating temperature range from -55°C to +125°C, locking features, and various optional configurations including screw-down and locking clip options for enhanced security. Suitable for mating with TFM series connectors, it offers durable design with plating options and is ideal for high-performance electronic assemblies.
SAMTEC SFM12002SDLCKTR Connector Module Specifications:
- Pitch: 1.27 mm
- Current Rating: 3.2A per pin
- Operating Temperature Range: -55°C to +125°C
- Contact Material: Phosphor Bronze
- Plating: Au over Sn (optional), other plating options available
- Contact Resistance: increases slightly with unmating
- Insertion Depth: 4.06 mm
- Tails: Surface mount or through-hole
- Locking feature: Yes, with clip option
- Soldering: Lead-free solderable
- Compatiblity: Mates with TFM series
- Material: Black Liquid Crystal Polymer insulator
- Dimensions: Micro pitch 1.27 x 1.27 mm, optional sizes vary
- Features: Locking actuation, optional screw-down, PCB compatible
- Durability: Passes 10-year manufacturing tests
- Compatibility: Includes SMT and through-hole options, with low coplanarity of 0.10-0.15 mm
Buy the Buy Samtec SFM12002SDLCKTR Connector Part Number SFM12002SDLCKTR Online
Purchase the Samtec SFM12002SDLCKTR connector online today to ensure your electronic projects benefit from high reliability, low insertion force, and durable performance. Ideal for PCB applications, this connector features Tiger Eye contacts made of phosphor bronze, with options for surface mount or through-hole configurations. It supports a wide temperature range from -55°C to +125°C, has a maximum current rating of 3.2A per pin, and includes locking features for secure connections. Order now to enhance your device’s durability and connection stability.
Order your Samtec Series SFM12002SDLCKTR connector today and ensure your electronic assemblies benefit from dependable, high-reliability connections with Tiger Eye contacts.
Frequently Asked Questions
Where can I buy SAMTEC SFM12002SDLCKTR?
You can click on the BUY or RFQ button to purchase SFM12002SDLCKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFM12002SDLCKTR?
You can download the SFM12002SDLCKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFM12002SDLCKTR?
SAMTEC
