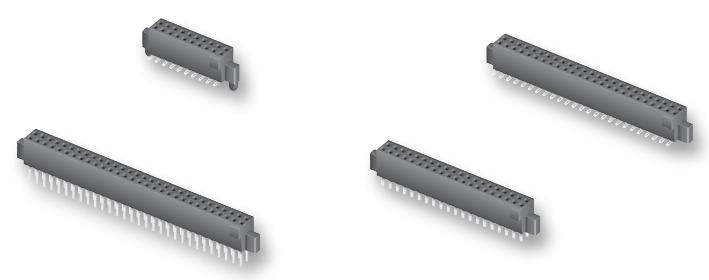

SAMTEC SFM14001SD Electronic Connector
The SFM14001SD is a high-reliability, low insertion force connector designed for precise electronic applications. Featuring Tiger Eye contacts made of phosphor bronze, it supports both surface mount and through-hole mounting options, with a temperature range from -55°C to +125°C. The connector offers a locking clip, screw-down, and locking feature options for enhanced stability. It is rated for 3.2A per pin, with various sizes, plating options, and configurations available for versatile use in complex electronic assemblies.
SAMTEC SFM14001SD Electronic Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Plating: Au over SO 1.27μm
- Current Rating: 3.2A per pin
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: increases on unmating
- Insertion Depth: 4.06 mm
- Contact Material: Phosphor Bronze
- Lead-Free Solderable: Yes
- Surface Mount or Through-hole Tails: 1.27mm x 1.27mm, 0.050" x 0.050"
- Solder Nail Option: Available
- Locking Feature: yes
- Voltage Rating: (not specified), but rated for 3.2A per pin
- Compatible with TFM for coplanar and perpendicular mating
- Manufacturing Certifications: Various recognition standards available externally
- Additional Options: Locking clip, screw-down, locking feature, multiple sizes and platings
Buy the Buy Samtec SFM14001SD Part Number SFM14001SD Online
Order the Samtec SFM14001SD connector online today for top-tier reliability and versatile mounting options. Suitable for surface mount and through-hole applications, it features Tiger Eye contacts made of phosphor bronze, rated for 3.2A per pin. With a temperature range from -55°C to +125°C, locking features, and multiple plating options, this connector ensures secure, durable connections. Perfect for complex electronics requiring high reliability, this product simplifies your assembly process while providing exceptional performance with optional locking clips and screw-down options for added stability.
Buy Samtec SFM14001SD now and experience unmatched reliability and performance in your electronic connections with high durability and flexible mounting options.
Frequently Asked Questions
Where can I buy SAMTEC SFM14001SD?
You can click on the BUY or RFQ button to purchase SFM14001SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFM14001SD?
You can download the SFM14001SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFM14001SD?
SAMTEC
