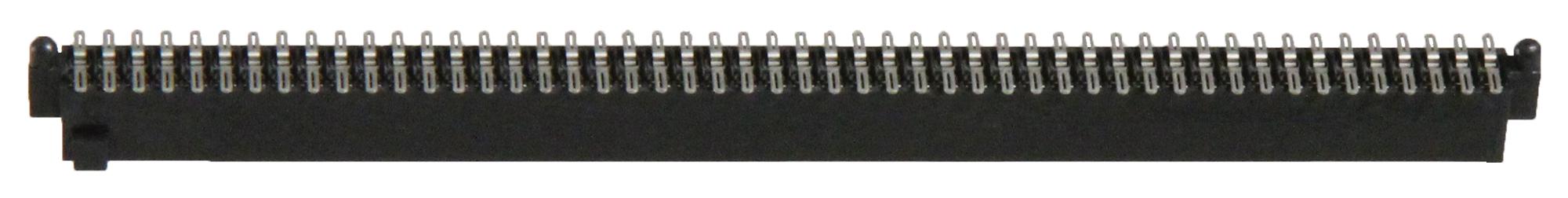

SAMTEC SFM15002SDA connector socket
The SFM-150-02-S-D-A is a dual-row, 100-position connector socket featuring Tiger Eye™ contacts made from gold-plated beryllium copper, ensuring reliable electrical connections. Encased in a black liquid crystal polymer insulator for durability and high temperature stability, it supports both surface mount and through-hole configurations. Designed for industrial applications, it accommodates a voltage rating of 300V and a current rating of 3.2A per pin, with an operating temperature range from -55°C to 125°C. Key features include optional locking clips, screw-down options, and compatibility with TFM, TFSD, and TFSS series connectors for versatile assembly solutions.
SAMTEC SFM15002SDA connector socket Specifications:
- Number of positions: 100
- Number of rows: 2
- Contact Material: Gold-plated beryllium copper
- Insulator Material: Black liquid crystal polymer
- Plating: Gold
- Voltage Rating: 300V
- Current Rating: 3.2A per pin
- Operating Temperature Range: -55°C to +125°C
- Connection Type: Surface mount or through-hole
- Locking feature: Optional locking clip and screw down
- Compatibility: TFM, TFSD, TFSS series connectors
- Dimensions: 1.27mm pitch, 2-row, measures approximately 19.05mm x 19.05mm
- Solderability: Lead-free solderable
- Contact Resistance: Low resistance for reliable electrical connection
- Durability: Designed for high reliability and long-term use
- Compliance: Recognized under industry standards
Buy the Buy Samtec SFM-150-02-S-D-A Part Number SFM15002SDA Online
Purchase the Samtec SFM-150-02-S-D-A connector socket online for superior quality and dependable electrical performance. With a 100-position dual-row design, gold-plated beryllium copper contacts, and a tough liquid crystal polymer insulator, this socket is ideal for demanding industrial environments. Its compatibility with TFM, TFSD, and TFSS series connectors makes it versatile for various applications. Offering reliable connection, high temperature resilience, and optional locking features, this socket ensures robust and enduring connections in your electronic assemblies. Buy now for long-term reliability.
Get Samtec SFM-150-02-S-D-A today—built for precision, high reliability, and long-lasting durability in industrial connector applications.
Frequently Asked Questions
Where can I buy SAMTEC SFM15002SDA?
You can click on the BUY or RFQ button to purchase SFM15002SDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFM15002SDA?
You can download the SFM15002SDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFM15002SDA?
SAMTEC
