SAMTEC SFMC104T1SD High-Reliability SMT Connector
The SFMC series high-reliability connectors feature Tiger Eye™ contact technology with BeCu and Phosphor Bronze materials, suitable for PCB applications. These surface-mount connectors support from 2 to 50 positions, with slotted tails designed for SMT. Operating temperature ranges from -55°C to +125°C, and they are RoHS compliant with lead-free processing. With a contact resistance of 15 mΩ and an insertion force of 2.5 oz for standard contacts, they support up to 10,000 cycles, making them ideal for demanding electronic assemblies requiring durable, high-performance connections.
SAMTEC SFMC104T1SD High-Reliability SMT Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Tiger Eye BeCu and Phosphor Bronze
- Plating: Au over Ni, matte Tin on tails
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 15 mΩ
- Insertion Depth: 0.120" to 0.160" (3.05 mm to 4.06 mm)
- Insertion Force: Standard 2.5 oz (0.69 N), LITE 2.0 oz (0.56 N), LIF 1.5 oz (0.42 N)
- Withdrawal Force: 2.0 oz (0.56 N), 1.5 oz (0.42 N)
- Max Cycles: 10,000
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable, SMT lead coplanarity 0.10 mm to 0.15 mm
- Number of Positions: 2 to 50
- Surface Mount Tails: Slotted for SMT, optional Pick & Place Pads

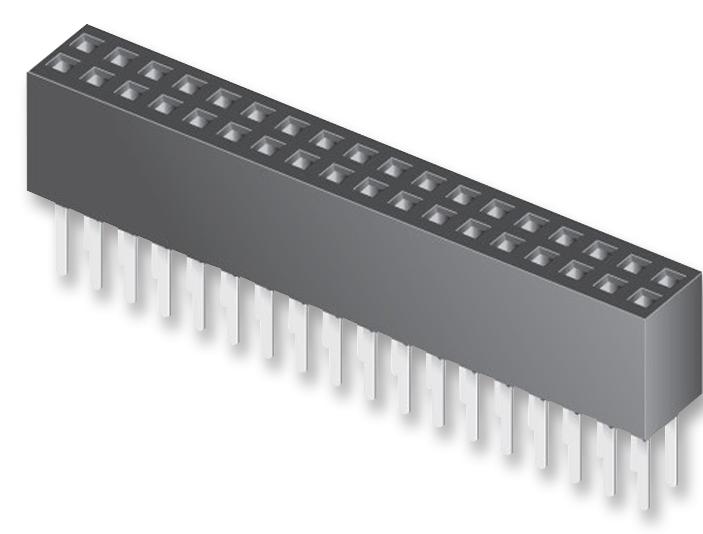

Buy the Samtec Series SFMC Connectors: SFMC-117-T1-L-D
Purchase the high-reliability SMT connector from the Samtec SFMC series online now. Designed for demanding electronic applications, it features Tiger Eye™ contact technology, supports 2 to 50 positions, and withstands up to 10,000 insertion cycles. RoHS compliant with lead-free processing, these connectors offer excellent temperature tolerance from -55°C to +125°C. Their slotted SMT tails facilitate easy installation on PCB layouts, ensuring durable, high-performance connections for your projects. Order now to guarantee quality and reliability in your electronic designs.
Order your Samtec Series SFMC-117-T1-L-D high-reliability connectors today and ensure your electronic assemblies meet demanding durability requirements.
Frequently Asked Questions
Where can I buy SAMTEC SFMC104T1SD?
You can click on the BUY or RFQ button to purchase SFMC104T1SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFMC104T1SD?
You can download the SFMC104T1SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFMC104T1SD?
SAMTEC
