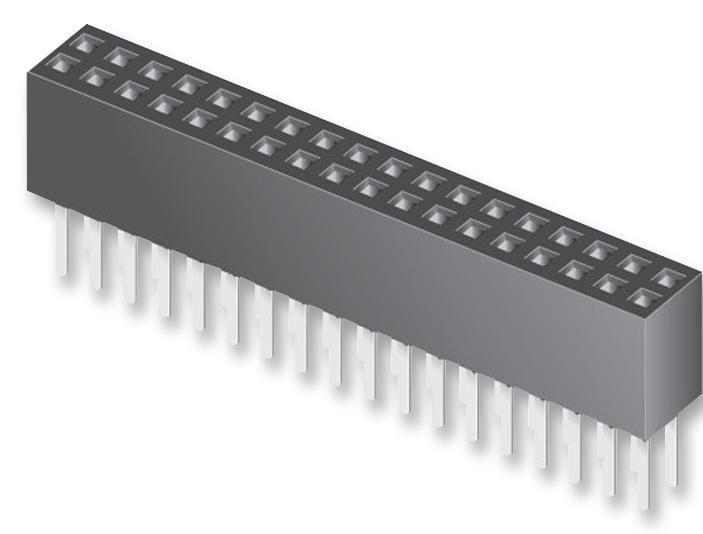

SAMTEC SFMC10503SD High-Reliability Socket Strip
The Samtec SFMC series features high-reliability, flexible socket strips with Tiger Eye contacts for robust electrical connections in industrial settings. Made from black liquid crystal polymer insulator, they support 2 to 50 contacts per row in dual-row, vertical configurations. With gold-plated BeCu contacts (30µ-inch) and a contact resistance of 15 milliohm, these connectors operate from -55°C to +125°C, ensuring durability and high performance. Compatibl e with Samtec TFM, FMTP, and FFMD series connectors, they meet UL and CSA safety certifications for reliable, industrial-grade performance.
SAMTEC SFMC10503SD High-Reliability Socket Strip Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Beryllium Copper (BeCu)
- Plating: 30µ-inch Gold over Nickel
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 15 milliohm
- Insertion Depth: 3.05mm to 4.06mm (0.120 to 0.160 inches)
- Insertion Force: Standard 2.5 oz, LITE 2.0 oz, LIF 1.5 oz
- Normal Force: Standard 1.29 N, LIF 0.88 N
- Withdrawal Force: 2.0 oz (0.56 N), LITE 1.5 oz (0.42 N), LIF 1.5 oz (0.42 N)
- Max Cycles: 10,000 with 30µ-inch Gold Plating
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- Coplanarity: 0.10 mm (0.004 inch), 0.15 mm (0.006 inch)
- Number of Positions: 2 to 50
- Compatibility: TFM, FMTP, FFMD series connectors
Buy the Samtec SFMC – Reliable Electrical Socket Strips for Industrial Applications
Purchase the Samtec SFMC series socket strips online now to secure high-quality, durable connections suitable for demanding industrial applications. Featuring gold-plated BeCu contacts and a black liquid crystal polymer insulator, these connectors support 2 to 50 contacts per row, operate from -55°C to +125°C, and withstand up to 10,000 cycles. Their RoHS compliance and lead-free processing ensure environmentally friendly, safe installation. Fast, reliable shipping makes it easy to incorporate these high-performance socket strips into your manufacturing or maintenance projects with confidence and efficiency.
Order your Samtec SFMC series socket strips today and ensure dependable, high-performance electrical connections for your industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC SFMC10503SD?
You can click on the BUY or RFQ button to purchase SFMC10503SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFMC10503SD?
You can download the SFMC10503SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFMC10503SD?
SAMTEC
