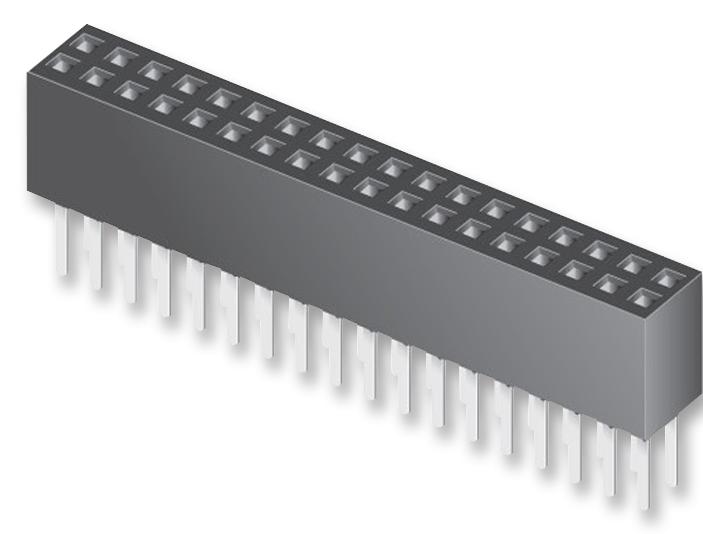

SAMTEC SFMC10801SD Surface Mount Connector
The SFMC series features high-reliability surface-mount connectors with Tiger Eye™ contacts, made from BeCu or Phosphor Bronze, plated with 50 microinches of gold over nickel. Designed for PCB applications, these connectors support up to 10,000 cycles, operate within -55°C to +125°C, and offer low contact resistance of 15 milliohms. Available in configurations with 2 to 50 positions, they feature slotted tails and optional pick & place pads. Suitable for demanding industrial, automation, and PCB assembly environments, they ensure durable, corrosion-resistant electrical connections.
SAMTEC SFMC10801SD Surface Mount Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Tiger Eye™ BeCu, Tiger Eye™ LITE Phosphor Bronze
- Plating: 50 microinches gold over nickel
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 15 milliohms
- Insertion Depth: 3.05 mm to 4.06 mm
- Maximum Cycles: 10,000
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable, RoHS compliant
- Number of Positions: 2 to 50
- Tails: Slotted SMT tails
- Contact Force: Standard 2.5 oz, LITE 2.0 oz, LIF 1.5 oz
- Withdrawal Force: Approx. 2.0 oz
- RoHS Compatibility: Yes
Buy the Samtec SFMC-117-T1-L-D – Reliable PCB Connectors for Industrial Applications
Order the high-reliability surface-mount connector series from Samtec today. These versatile connectors feature Tiger Eye™ contacts, supported by gold over nickel plating for corrosion resistance. With operating temperatures from -55°C to +125°C and support for up to 10,000 cycles, they are ideal for demanding industrial and automation environments. Available in configurations with 2 to 50 positions and slotted SMT tails, ensuring secure, long-lasting electrical connections. Buy online now for superior PCB assembly performance and reliability.
Get Samtec SFMC-117-T1-L-D today—built for high reliability, durability, and excellent electrical performance in PCB applications.
Frequently Asked Questions
Where can I buy SAMTEC SFMC10801SD?
You can click on the BUY or RFQ button to purchase SFMC10801SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFMC10801SD?
You can download the SFMC10801SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFMC10801SD?
SAMTEC
