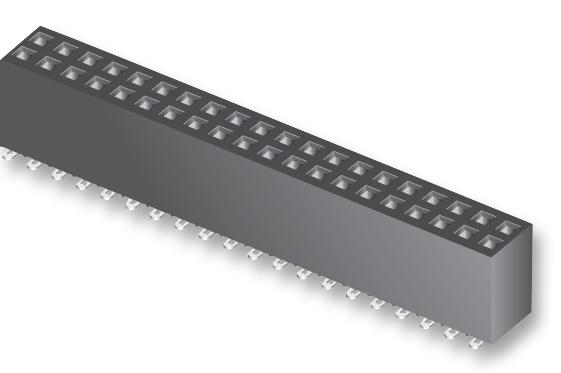

SAMTEC SFMC11202SD Surface Mount High-Relay Connector
The SFMC11202SD is a high-reliability surface-mount connector featuring Tiger Eye™ contacts made from BeCu, with phosphor bronze options. It supports 2 to 50 positions and is RoHS compliant, suitable for PCB applications requiring precise insertion and withdrawal forces. Constructed with Black Liquid Crystal Polymer insulation, it offers operating temperatures from -55°C to +125°C. The contact resistance is 15 milliohms, and it can withstand up to 10,000 cycles. Ideal for high-density, reliable electronic connections with optional pick and place pads available.
SAMTEC SFMC11202SD Surface Mount High-Relay Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Tiger Eye™ = BeCu; Tiger Eye™ LITE= Phosphor Bronze
- Plating: Au over Ni, 50 microinches minimum
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 15 mΩ
- Insertion Depth: 3.05 mm (.120") to 4.06 mm (.160")
- Insertion Force: Standard 2.5 oz (0.69 N) avg; LITE 2.0 oz (0.56 N) avg; LIF 1.5 oz (0.42 N) avg
- Withdrawal Force: 2.0 oz (0.56 N) avg
- Max Cycles: 10,000 with 30” (0.76 μm) Au
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable, SMT Lead Coplanarity 0.10 mm (.004") max, 0.15 mm (.006") max
- Available with optional pick and place pads
- Compatible with: TFM, FMTP, FFMD series
- Number of Positions: 2 through 50
- RoHS: Compliant and suitable for lead-free assembly
Buy the Buy Samtec SFMC Series Part Number SFMC11202SD Online
Purchase the high-reliability Surface Mount High-Relay Connector online today. Featuring Tiger Eye™ contacts made from BeCu, it supports up to 50 positions, with precise operating temperature from -55°C to +125°C. RoHS compliant and rated for 10,000 cycles, this connector ensures dependable connections for demanding electronic systems. It includes optional pick and place pads for easy assembly, is suitable for lead-free soldering, and provides excellent contact resistance. Order now to enhance your PCB deployment with proven quality and performance.
Buy Samtec SFMC11202SD now and experience unmatched reliability and performance with high-density connectors designed for demanding electronic applications.
