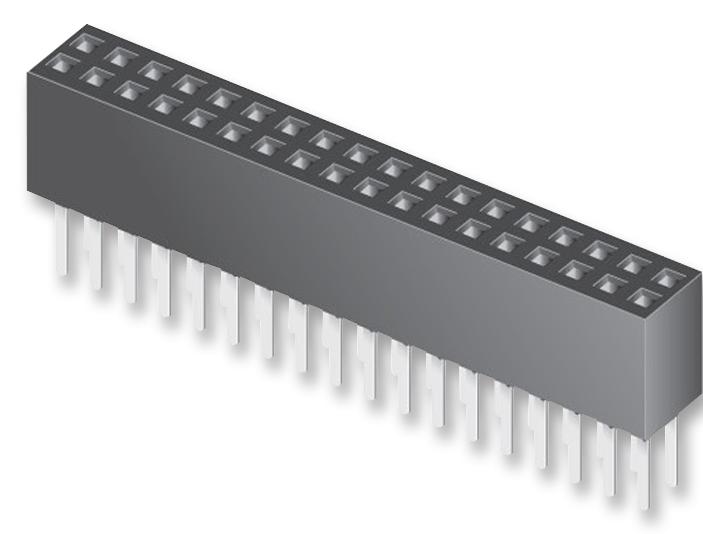

SAMTEC SFMC12001SD High-Reliability Socket Strip
The SFMC series from Samtec features high-reliability, flexible pin count socket strips designed for versatile connectivity in industrial applications. These socket strips are compatible with TFM, FMTP, and FFMD series connectors. They feature a dual-row vertical orientation, 1.27mm pitch spacing, and offer options for 2 to 50 contacts per row. Contacts are gold plated on beryllium copper, with low contact resistance of 15 milliohms. Constructed from black liquid crystal polymer, they ensure durability across -55°C to 125°C, meeting UL and CSA standards for professional electronic assemblies.
SAMTEC SFMC12001SD High-Reliability Socket Strip Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Au or Sn over 501" (1.27 μm) Ni, Beryllium Copper
- Contact Resistance: 15 milliohms
- Current Rating: 2.9 A per pin (2 pins powered)
- Voltage Rating: Not specified
- Operating Temperature Range: -55°C to 125°C
- Insertion Depth: 0.120" to 0.160" (3.05 mm to 4.06 mm)
- Normal Force: 132 g (1.29 N) on standard, 90 g (0.88 W) on others
- Max Cycles: 10,000 with 30 μ-inch Au
- Pitch Spacing: 1.27 mm
- Contacts per row: Options from 2 to 50
- Plating Options: Au or Sn, with alternative options available via MOQ
- Compliance: UL E111594, CSA 090871
- Processing: Lead-Free Solderable, SMT compatible
- Dimensions: Length varies; typical width approximately 0.51" (13 mm)
Buy the Samtec Series SFMC Flexible Socket: SFMC12001SD
Enhance your electronic assembly with the Samtec SFMC series socket strips, offering versatile connectivity options, durable black liquid crystal polymer insulators, and gold-plated contacts for low resistance. Suitable for industrial applications, these socket strips support from 2 to 50 contacts, are lead-free and solderable, and comply with UL and CSA standards. Their robust design ensures long cycle life of up to 10,000 insertions, making them ideal for demanding environments and high-performance electronic devices. Order online today for reliable, professional-grade connectivity solutions.
Buy Samtec SFMC12001SD high-reliability socket strips now and experience durable, versatile connectivity for your electronic projects.
