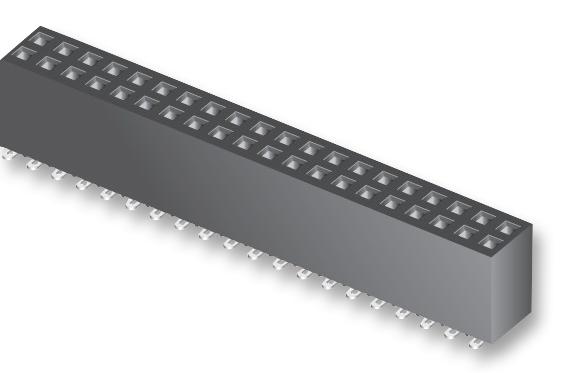

SAMTEC SFMC12002SD Socket Strip
The SFMC series by Samtec offers high-reliability, flexible pin count socket strips designed for seamless mating with TFM, FMTP, and FFMD connectors. These surface-mount socket strips feature a 1.27mm pitch spacing, black liquid crystal polymer insulators, and beryllium copper contacts plated with 30 µin gold for excellent conductivity. Operating efficiently from -55°C to 125°C, they provide a contact resistance of 15 milliohms, making them ideal for industrial applications requiring durability, precision, and reliable electrical connections.
SAMTEC SFMC12002SD Socket Strip Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Beryllium Copper (BeCu)
- Contact Plating: 30 microinches Gold
- Contact Resistance: 15 milliohms
- Current Rating: 2.9 A per pin (2 pins powered)
- Voltage Rating: 100 VAC
- Operating Temp Range: -55°C to 125°C
- Insertion Depth: 0.120" to 0.160" (3.05 mm to 4.06 mm)
- Normal Force: Standard= 132 g (1.29 N), LIPS=90 g (0.88 N)
- Max Cycles: 10,000 with 30 microinches gold plating
- Dimensions: Pitch spacing 1.27mm, length options vary, surface-mount style
- Certification: UL E111594, CSA 090871
- Processing: Lead-Free Solderable, SMT Lead Coplanarity 0.004" - 0.006"
Buy the Buy Samtec SFMC Part Number SFMC12002SD Online
Purchase the Samtec SFMC socket strip online today for dependable and precise electrical connections in industrial environments. Featuring a 1.27mm pitch, gold-plated contacts, and black liquid crystal polymer insulators, these socket strips ensure excellent conductivity and durability. With a temperature range from -55°C to 125°C and a contact resistance of 15 milliohms, they are suitable for high-performance applications. Easy to install, lead-free, and capable of 10,000 insertion cycles, they provide a reliable solution for complex assembly requirements. Order now for fast delivery and superior quality.
Get Samtec SFMC12002SD today—designed for high-reliability industrial applications with durable gold-plated contacts.
Frequently Asked Questions
Where can I buy SAMTEC SFMC12002SD?
You can click on the BUY or RFQ button to purchase SFMC12002SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFMC12002SD?
You can download the SFMC12002SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFMC12002SD?
SAMTEC
