SAMTEC SFMC12501SD Socket Strip
The SFMC series from Samtec features high-reliability flexible socket strips with Tiger Eye contacts, designed for versatile connections. These connectors support 2 to 50 pin configurations with a 1.27mm pitch. Constructed with black liquid crystal polymer insulators and BeCu contacts plated with 30 microns of gold, they ensure durability and excellent electrical performance. The socket strips operate within a temperature range of -55°C to 125°C, have a contact resistance of 15 milliohms, and meet UL and CSA standards, making them suitable for demanding industrial applications.
SAMTEC SFMC12501SD Socket Strip Specifications:
- Contact Material: BeCu
- Plating: 30μ
- Gold over nickel
- Insulator Material: Black Liquid Crystal Polymer
- Contact Resistance: 15 milliohms
- Operating Temp Range: -55°C to 125°C
- Insertion Force: Standard 2.5 oz (0.69 N) avg.
- Withdrawal Force: 2.0 oz (0.56 N) avg.
- Max Cycles: 10,000 with 30μ
- Gold plating
- RoHS Compliant: Yes
- Number of Positions: 2 to 50
- Pitch: 1.27mm
- UL/CSA: Yes, complies with standards
- Mounting Style: Surface Mount (SMT)
- Compatibility: Supports TFM, FMTP, FFMD series
- Temperature Range: -55°C to +125°C

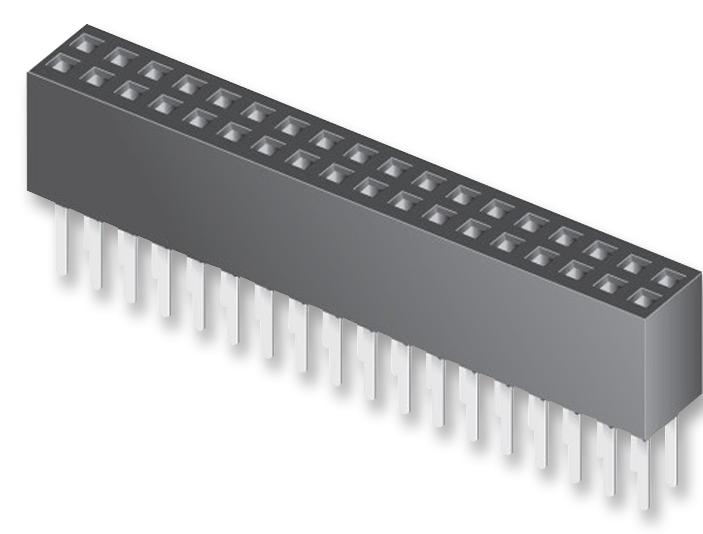

Buy the Buy Samtec Socket Strips Part Number SFMC12501SD Online
Secure your connections with the high-reliability Samtec socket strip series. Designed for versatile industrial applications, these connector strips feature Tiger Eye™ contacts, black liquid crystal polymer insulators, and gold-plated BeCu conductive elements. Supporting 2 to 50 pin configurations at a 1.27mm pitch, they are RoHS compliant and operate reliably from -55°C to 125°C. Choose these durable, UL and CSA certified socket strips for optimal performance and long-lasting connections in your electronic and industrial assemblies.
Buy Samtec socket strips SFMC12501SD now and experience unmatched reliability and high-performance connections for your industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC SFMC12501SD?
You can click on the BUY or RFQ button to purchase SFMC12501SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFMC12501SD?
You can download the SFMC12501SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFMC12501SD?
SAMTEC
