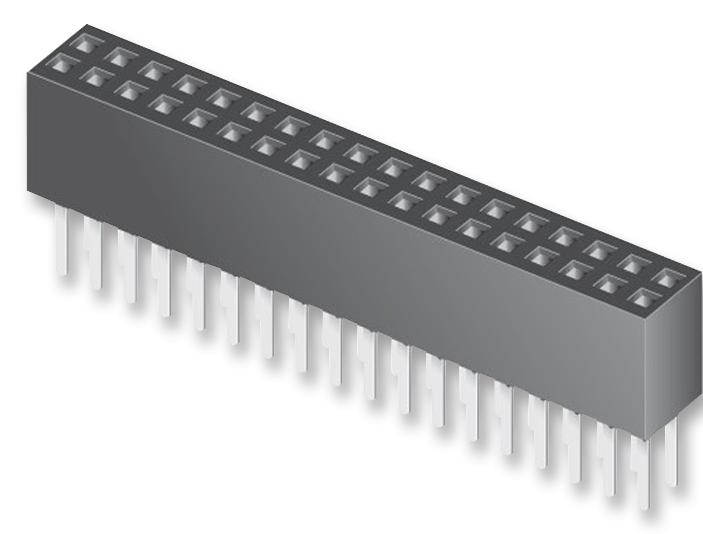

SAMTEC SFMC150L1SD Socket Strip
The SFMC series from Samtec features high-reliability Tiger Eye socket strips designed for flexible applications. These dual-row, vertically oriented socket strips have a 1.27mm pitch and support 2 to 50 contacts per row. Crafted with low insertion force, they suit through-hole mounting (-L1, -L3) and feature gold-plated contacts made from beryllium copper, ensuring low contact resistance of 15mΩ. The black liquid crystal polymer insulator provides excellent durability. These sockets meet UL and CSA standards, operate reliably between -55°C and 125°C, and are ideal for industrial, automation, and electronics testing environments.
SAMTEC SFMC150L1SD Socket Strip Specifications:
- Pitch: 1.27mm
- Contact Material: Beryllium copper with Au or Sn over 501" (1.27 μm) Ni
- Number of Contacts: 2 to 50 per row
- Mounting: Through-hole (-L1, -L3)
- Insulator Material: Black Liquid Crystal Polymer
- Contact Resistance: 15mΩ
- Operating Temp Range: -55°C to 125°C
- Standard Compliance: UL E111594, CSA 090871
- Max Cycles: 10,000
- Solderability: Lead-Free compatible
- Insertion Depth: .120
- 4.06
Buy the Buy Samtec SFMC Part Number SFMC150L1SD Online
Purchase the reliable Samtec SFMC socket strip series online today and benefit from high-quality, low-insertion-force connectors. Designed for industrial applications, these durable socket strips support 2 to 50 contacts, feature gold-plated contacts for excellent conductivity, and operate reliably between -55°C and 125°C. Their black liquid crystal polymer insulator ensures durability under demanding conditions. Ideal for testing, automation, and PCB connections, order now for quick delivery and seamless integration of premium connection solutions.
Order your Samtec Series SFMC SFMC150L1SD socket strip today and enhance your industrial and electronics testing projects with reliable, low-force connectors.
