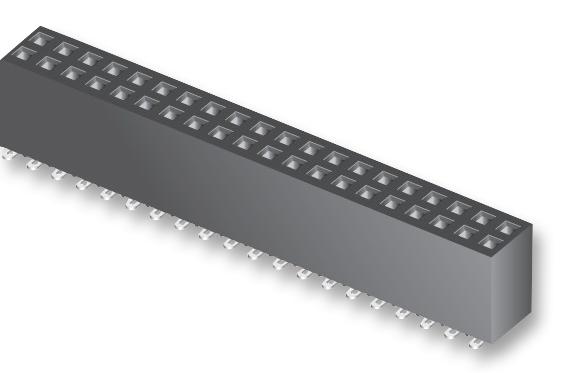

SAMTEC SFMC150L2SD Flexible Socket Strips
The SFMC series from Samtec offers high-reliability Tiger Eye™ flexible socket strips, designed for versatile PCB connections. These dual-row, vertical connectors feature 1.27mm pitch spacing, accommodating 2 to 50 contacts per row. Made with black liquid crystal polymer insulators, they offer low-insertion force surface-mount options with gold-plated contacts, boasting a contact resistance of 15 milliohms. Operating from -55°C to 125°C, these connectors ensure durability and compliance with UL and CSA standards, ideal for industrial and electronic applications demanding reliable mating with Samtec TFM, FMTP, and FFMD series components. Suitable for flexible circuit and PCB interconnects.
SAMTEC SFMC150L2SD Flexible Socket Strips Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Au or Sn over 501" (1.27 µm) Ni, BeCu
- Current Rating: 2.9 Amper per pin (2 pins powered)
- Voltage Rating: Not specified but suitable for typical PCB applications
- Operating Temp Range: -55°C to 125°C
- Insertion Depth: 0.120" to 0.160" (3.05 mm to 4.06 mm)
- Normal Force: Standard 132 g (1.29 N), LIPS 90 g (0.88 W) avg.
- Max Cycles: 10,000
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.004" (0.10 mm) max for 2-26 pins, 0.006" (0.15 mm) max for 27-50 pins
- Connector Sizes: 2 to 50 contacts per row
- Compliance: UL E111594, CSA 090871
- Mounting Style: Surface mount, Through-hole, Tape & Reel options
- Additional Options: Various plating, lengths, and special configurations available upon request
Buy the Samtec Series SFMC Flexible Socket Strips: SFMC150L2SD
Enhance your electronic and industrial projects with Samtec’s SFMC flexible socket strips. Designed for reliable PCB connections, these components feature gold-plated contacts, durable black liquid crystal polymer insulators, and support a wide temperature range from -55°C to 125°C. Ideal for versatile applications, they offer low-insertion force and high cycle durability up to 10,000 cycles. Available in various sizes and configurations, order online today for quick delivery and dependable performance in your next assembly or prototype.
Buy Samtec SFMC150L2SD flexible socket strips now and experience unmatched reliability and performance for PCB connectivity solutions.
