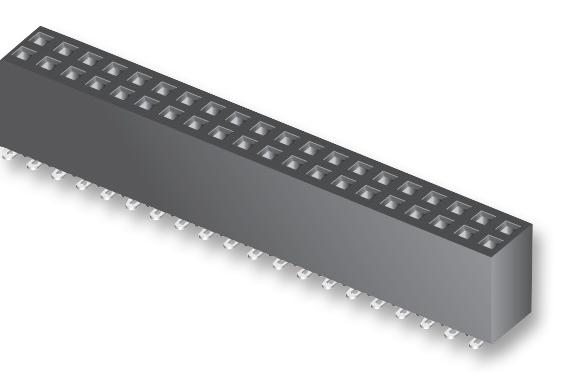

SAMTEC SFMC150T2SD Tiger Eye Socket
The SFMC series from Samtec features high-reliability Tiger Eye flexible pin socket strips designed for versatile electronic applications. Compatible with Samtec TFM, FMTP, and FFMD connectors, they have a dual-row vertical design with 1.27mm pitch spacing. These socket strips come with surface-mount Tiger Eye LITE contacts that are gold plated at 30 micrometers, made of phosphor bronze with a contact resistance of 15 milliohms. They operate efficiently in temperatures from -55°C to 125°C, making them suitable for demanding industrial and electronics projects.
SAMTEC SFMC150T2SD Tiger Eye Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze with Au or Sn over 50.1 um Ni
- Current Rating: 2.9 A per pin (2 pins powered)
- Voltage Rating: not specified
- Operating Temp Range: -55°C to 125°C
- Insertion Depth: 0.120" to 0.160" (3.05 mm to 4.06 mm)
- Normal Force: Standard= 132 g (1.29 N) avg., LIPS= 90 g (0.88 W) avg.
- Max Cycles: 10,000 with 30 um Au plating
- Surface Mount Tiger Eye LITE contact (-T2)
- Plating: Gold plated at 30 micrometers
- Connector Series Compatibility: TFM, FMTP, FFMD
- Material: Phosphor bronze, Liquid Crystal Polymer insulator
- Resistance: 15 milliohms
- Temperature Range: -55°C to 125°C
- Standards: UL E111594, CSA 090871
- Optional features: Lead-Free Solderable, SMT Lead Coplanarity adjustable, available in various lengths and options
Buy the Buy Samtec SFMC Part Number SFMC150T2SD Online
Purchase the Samtec Tiger Eye Socket Strip SFMC150T2SD online today to enhance your electronic assemblies. With high-reliability gold-plated contacts, dual-row design, and compatibility with multiple connector series, this socket strip is ideal for industrial and high-performance applications. Its operating temperature range from -55°C to 125°C ensures durability in demanding environments. Easy to solder and install, these socket strips provide stable, long-lasting connections. Order now to access quality connectors that meet industry standards and improve your project's reliability and efficiency.
Order your Samtec SeriesSFMC SFMC150T2SD socket strip today and ensure your electronic projects are built with high-reliability, versatile connection solutions.
Frequently Asked Questions
Where can I buy SAMTEC SFMC150T2SD?
You can click on the BUY or RFQ button to purchase SFMC150T2SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFMC150T2SD?
You can download the SFMC150T2SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFMC150T2SD?
SAMTEC
