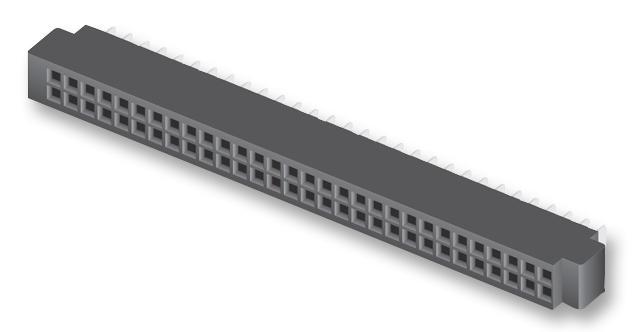

SAMTEC SFMH11002LD Industrial Connector
The SFMH series are high-quality surface-mount and through-hole connectors designed for industrial applications, supporting up to 26 A per pin. Made with phosphor bronze contacts and black liquid crystal polymer insulators, these connectors feature gold flash or tin over gold plating for reliability. They support operating temperatures from -55°C to +125°C, with precise coplanarity and insertion-force specifications. Compatible with various sizes and options, they are RoHS compliant, ensuring environmentally safe manufacturing and high durability for demanding electrical connections.
SAMTEC SFMH11002LD Industrial Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn over Au or Au over Ni
- Current Rating: 26 A per pin
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant
- Process: Lead-Free Solderable
- Coplanarity: 0.15 mm max for through-hole, 0.10 mm max for SMT
- Insertion Depth: 3.35 mm to 4.57 mm
- Insertion Force: 2.5 oz (0.69 N) avg., Withdrawal Force: 2.0 oz (0.56 N) avg.
- Number of Positions: 05, 10, 15, 20, 25, with optional configurations
- Size: (No. of positions + 4) x 1.27 mm (.050 inch)
Buy the Samlec SFMH11002LD – Reliable Connector for Industrial Applications
Discover the Samlec SFMH series connectors, engineered for reliable electrical connections in industrial environments. These versatile connectors support up to 26 A per pin, with high-temperature tolerance and RoHS compliance, making them ideal for demanding applications. Available in surface-mount and through-hole options, they feature robust construction with phosphor bronze contacts and various plating options for durability and corrosion resistance. Easy to install with precise coplanarity and insertion force specifications, ensuring secure connections and long service life. Order now for high-performance automation and control systems.
Buy Samlec SFMH11002LD now and experience unmatched reliability and high current performance for demanding industrial connections.
Frequently Asked Questions
Where can I buy SAMTEC SFMH11002LD?
You can click on the BUY or RFQ button to purchase SFMH11002LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFMH11002LD?
You can download the SFMH11002LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFMH11002LD?
SAMTEC
