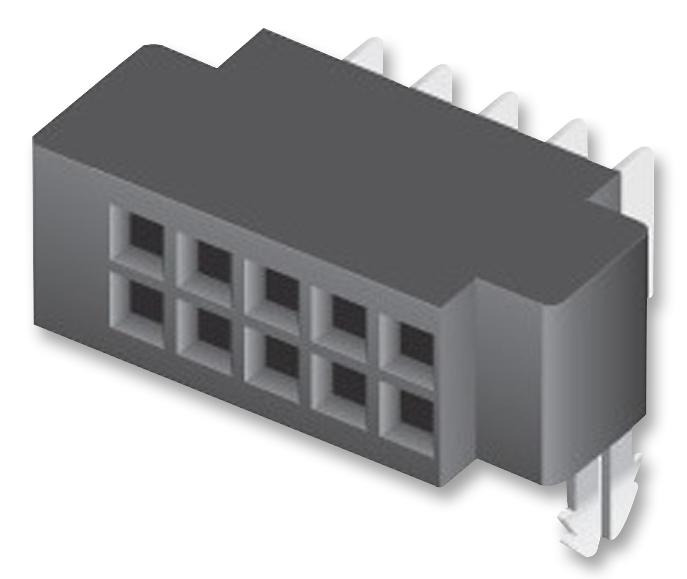

SAMTEC SFMH11002LDLC Surface Mount Connector
The SFMH series from Samtec consists of high-performance connectors designed for SMT applications, featuring liquid crystal polymer insulators and phosphor bronze terminals. These connectors support current ratings of 26 A per pin with operating temperatures ranging from -55°C to +125°C. They offer low contact resistance of 15mΩ, with precise coplanarity for surface-mount and through-hole options. The connectors are RoHS compliant, solderable, and available in various pin counts, making them ideal for demanding electronic and industrial assemblies requiring reliable electrical performance and robust construction.
SAMTEC SFMH11002LDLC Surface Mount Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn arAu over 50μ" (1.27μm) Ni or Au over 50μ" (1.27μm) Ni
- Current Rating: 26 A per pin
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Solderability: Lead-Free
- Coplanarity (SMT): 0.10 mm max
- Contact Resistance: 15 mΩ
- Insertion Depth: 3.35 mm to 4.57 mm
- Insertion Force: 2.5 oz (0.69 N) average
- Withdrawal Force: 2.0 oz (0.56 N) average
- Pin Count Options: 5, 10, 15, 20, 25 or greater
- Surface Mount and Through-Hole Styles Available
- Dimensions: Varies based on pin count; 1.27 mm pitch
- Standards: Recognized for quality and reliability
Buy the Buy Samtec SFMH Series Connector Part Number SFMH11002LDLC Online
Enhance your electronic projects by purchasing the Samtec SFMH Surface Mount Connector online today. These connectors feature high current ratings of 26A per pin, RoHS compliance, and durable construction suitable for demanding applications. With versatile pin configurations, solderable liquid crystal polymer insulators, and precise coplanarity, this connector ensures optimal performance for both surface mount and through-hole assembly. Secure your supply chain and benefit from fast, reliable shipping—order now to experience superior electrical performance and connectivity in your designs.
Order your Samtec Series SFMH11002LDLC connector today and ensure reliable electrical connectivity for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SFMH11002LDLC?
You can click on the BUY or RFQ button to purchase SFMH11002LDLC from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFMH11002LDLC?
You can download the SFMH11002LDLC datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFMH11002LDLC?
SAMTEC
