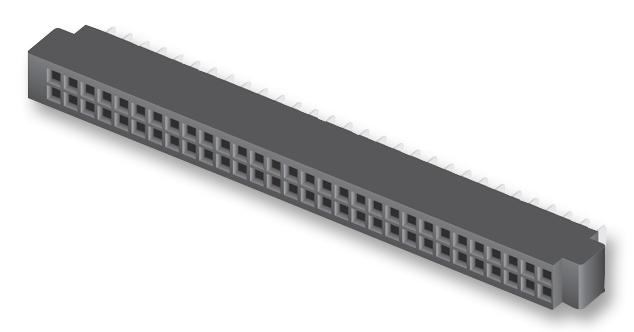

SAMTEC SFMH12502LD Electrical Connector
The SFMH series is a high-performance electrical connector designed for reliable SMT and through-hole applications. It features a black liquid crystal polymer insulator and phosphor bronze terminals with Sn arAu over plating, handling currents up to 26 A per pin. Operating within a temperature range of -55°C to +125°C, it ensures durability in demanding environments. This versatile connector supports various pin counts, with options for coplanarity, insertion, and withdrawal forces, making it suitable for complex electronic assemblies requiring precise connections and RoHS compliance.
SAMTEC SFMH12502LD Electrical Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn arAu over 50
- Current Rating: 26 A per pin
- Operating Temperature: -55°C to +125°C
- RoHS Compliant: Yes
- Sift Lead Coplanarity: 0.15 mm
- Contact Resistance: 15 mΩ
- Insertion Depth: 3.35 mm to 4.57 mm
- Insertion Force: 2.5 oz (0.69 N) average
- Withdrawal Force: 2.0 oz (0.56 N) average
- SMT Lead Coplanarity: 0.10 mm
- Pin Options: 05, 10, 15, 20, 25, 30, 35, 40, 45
- Sizes: 2 to 50 positions
- Compatible with RoHS regulation
Buy the Buy Samlec SFMH Series Part Number SFMH12502LD Online
Purchase the Samlec SFMH series connector online today to ensure precise, reliable electrical connections in your electronic assemblies. Featuring robust construction, high current capacity, and RoHS compliance, this connector supports multiple pin options and insertion depths, suited for both SMT and through-hole mounting. Designed for durability and consistent performance in demanding environments, it offers ease of installation and is available with various plating and coplanarity options. Simplify your procurement process by ordering this versatile component online with confidence, ensuring quality and quick delivery for your project needs.
Buy Samlec SFMH12502LD now and experience unmatched reliability and performance with high-current contact design for demanding electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC SFMH12502LD?
You can click on the BUY or RFQ button to purchase SFMH12502LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFMH12502LD?
You can download the SFMH12502LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFMH12502LD?
SAMTEC
