SAMTEC SFMH13502LD High-Current Electronic Connector
The SFMH series connectors are surface-mount and through-hole hybrid contact systems with a compact design suited for high-current, reliable electrical connections. Made with phosphor bronze and featuring Sn arAu plating, they operate within a temperature range of -55°C to +125°C, offering RoHS compliance. These connectors support up to 26 A per pin, with various pin counts and insertion depths, ideal for high-density electronic applications demanding durable, solderable, and precise contact solutions. They are widely used in automation, industrial equipment, and electronic systems requiring robust interconnects.
SAMTEC SFMH13502LD High-Current Electronic Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn arAu over Ni (varies by option)
- Current Rating: 26 A per pin
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliance: Yes
- Process: Lead-Free, Solderable
- Coplannarity: 0.15 mm (0.006 inches) max
- Insertion Depth: 3.35 mm (0.132 inches) to 4.57 mm (0.180 inches)
- Insertion Force: 2.5 oz (0.69 N)
- Withdrawal Force: 2.0 oz (0.56 N)
- Contact Resistance: 15 mΩ
- No. of Positions: Options from 5 to 50
- No. of Pins per Row: (Number of Positions + 4) x 1.27 mm (0.050 inches)
- Size Options: 05, 10, 15, 20, 25 positions, with DH option
- Mounting Style: Surface Mount and Through-Hole
- Design Flexibility: Various options and sizes available subject to specifications
- Certifications: www.samtec.com/quality

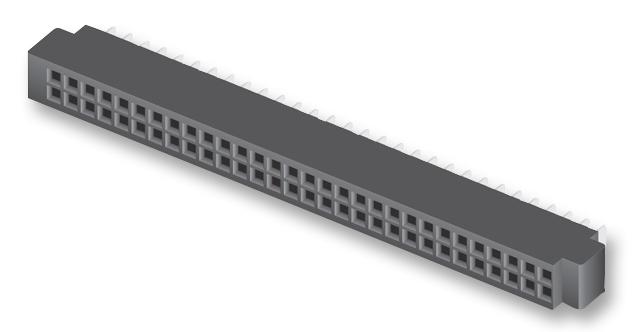

Buy the Samlec Series SFMH High-Current Connectors: SFMH13502LD
Experience reliable high-current connections with the Samlec SFMH series connectors, engineered for demanding industrial and electronic applications. These compact connectors feature phosphor bronze contacts with gold flash on the tail for excellent electrical performance and corrosion resistance. Suitable for surface-mount and through-hole configurations, they support up to 26 A per pin and operate across a broad temperature range of -55°C to +125°C. Ideal for automation, industrial control, and complex electronic assemblies, these connectors ensure durability, precision, and compliance with RoHS standards. Purchase online today for fast, secure delivery.
Get Samlec SFMH13502LD connectors today—designed for high-current, reliable connections in advanced electronic systems.
Frequently Asked Questions
Where can I buy SAMTEC SFMH13502LD?
You can click on the BUY or RFQ button to purchase SFMH13502LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFMH13502LD?
You can download the SFMH13502LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFMH13502LD?
SAMTEC
