SAMTEC SFMH14002LD Test Hook
The SFMH series from Samlec are high-quality test hooks designed for versatile testing and measurement applications. Crafted with durable materials such as Phosphor Bronze and liquid crystal polymer insulators, these test hooks provide reliable performance in various electrical testing scenarios. Featuring gold flash tail plating for enhanced conductivity, they support current ratings up to 26 A per pin and operate within a temperature range of -55°C to +125°C. Suitable for surface mount or through-hole configurations, they ensure easy installation and consistent contact resistance for accurate measurements.
SAMTEC SFMH14002LD Test Hook Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn arAu over 50μ" (1.27μm) Ni
- Current Rating: 26 A per pin
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Contact Resistance: 15mΩ
- Insertion Depth: 3.35 mm (0.132") to 4.57 mm (0.180")
- Insertion Force: 2.5 oz (0.69 N) average
- Withdrawal Force: 2.0 oz (0.56 N) average
- SMT Lead Coplanarity: 0.10 mm (0.004") max
- Number of Pins: 5, 10, 15, 20, 25 options
- No. of Positions + 2 x 1.27 mm (.050")
- Surface Mount and Through-Hole options available
- Compatibility: SFMH and FSH series, via specified options
- RoHS compliant process for lead-free soldering

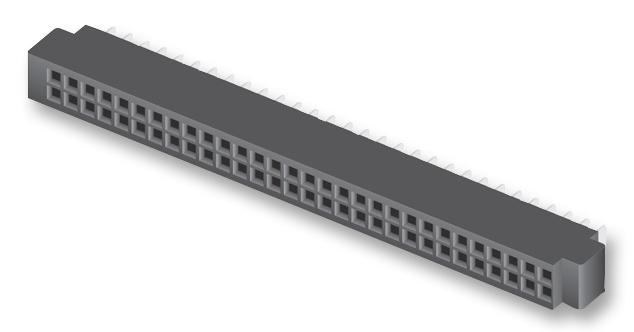

Buy the Buy Samlec SFMH Series Test Hooks Part Number SFMH14002LD Online
Enhance your electrical testing tasks with the Samlec SFMH series test hooks. Crafted from high-quality materials like Phosphor Bronze and liquid crystal polymer insulators, these test hooks support current ratings up to 26 A per pin and operate reliably across a wide temperature range. Their gold flash tail plating provides excellent conductivity and corrosion resistance. Suitable for surface mount or through-hole applications, these versatile test hooks offer easy installation, consistent contact resistance, and durability, making them ideal for reliable measurement and testing needs.
Order your Samlec Series SFMH14002LD test hook today and ensure dependable electrical testing with reliable contact resistance and robust construction.
Frequently Asked Questions
Where can I buy SAMTEC SFMH14002LD?
You can click on the BUY or RFQ button to purchase SFMH14002LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFMH14002LD?
You can download the SFMH14002LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFMH14002LD?
SAMTEC
