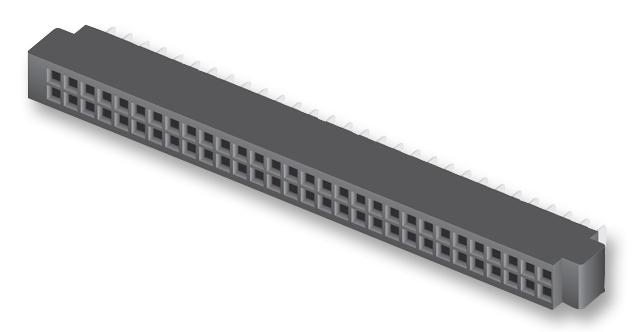

SAMTEC SFMH14502LD High-Density Connector
The SFMH14502LD is a high-quality surface mount connector designed for complex electronic applications. It features black liquid crystal polymer insulation and phosphor bronze terminals with Sn arAu over plating, ensuring durability and reliable performance. Operating within a temperature range of -55°C to +125°C, this connector supports current ratings up to 26 A per pin and offers precise coplanarity. Suitable for demanding environments, it is RoHS compliant and features easy soldering, making it ideal for compact, high-density electronic assemblies.
SAMTEC SFMH14502LD High-Density Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn arAu over, 50" (1,27 mm)
- Current Rating: 26 A per pin
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Process: Solderable, Lead-Free
- Coplanarity: 0.15 mm (.006") maximum
- Contact Resistance: 15 mΩ
- Insertion Depth: 3.35 mm (.132") to 4.57 mm (.180")
- Insertion Force: 2.5 oz (0.69 N) average
- Withdrawal Force: 2.0 oz (0.56 N) average
- Number of Positions: Varies (e.g., 5, 10, 15, 20, 25, 30, 35, 40, 45)
- Surface Mount: Yes
- Plating Options: Au over Ni, Sn arAu over
- Compatible with FSH Series and RoHS Standards
Buy the Buy Samlec SFMH14502LD Part Number SFMH14502LD Online
Purchase your Samlec SFMH14502LD connector online today to access advanced surface mount technology with high current ratings, RoHS compliance, and easy soldering features. Designed for compact electronic assemblies, this connector offers excellent coplanarity, durability, and reliable performance in demanding conditions. Order now and enhance your project’s electrical connection quality, ensuring long-term stability and efficiency for industrial, automotive, and consumer electronics. Trust Samlec for dependable, high-performance components.
Order your Samlec Series SFMH14502LD connector today and ensure robust, high-density connections with excellent thermal performance and reliability.
Frequently Asked Questions
Where can I buy SAMTEC SFMH14502LD?
You can click on the BUY or RFQ button to purchase SFMH14502LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFMH14502LD?
You can download the SFMH14502LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFMH14502LD?
SAMTEC
