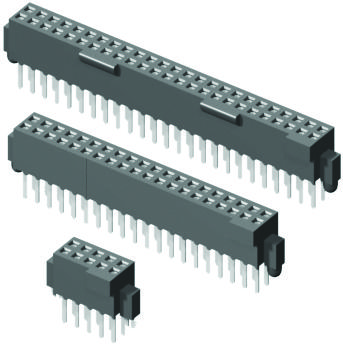

SAMTEC SFML110T1SD Surface Mount Connector
The SFML-110-T1 surface-mount connector features high reliability Tiger Eye contacts, low insertion force, and a compact 1.27 mm micro pitch. Designed for demanding electronic applications, it supports operating temperatures from -55°C to +125°C, with a contact resistance of 15 mΩ and a maximum of 10,000 mating cycles. It offers options with locking features, RoHS compliance, and various attachment styles, including through-hole tails and surface mount configurations, suitable for high-density interconnections in electronic assemblies.
SAMTEC SFML110T1SD Surface Mount Connector Specifications:
- Contact Material: Tiger Eye™= BeCu, Phosphor Bronze
- Plating: Au over 50 um Ni
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 15 mΩ
- Insertion Depth: 3.05 mm to 4.06 mm
- Wiping Distance: 0.38 mm
- Maximum Cycles: 10,000
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pitch: 1.27 mm
- Dimensions: 1.27 mm x 1.27 mm
- Current Rating: 5A per contact at 20°C, 45A at 40°C
- Number of Positions: 2x3 (6 positions)
- Locking Option: Available
- Mates with: TFM, TFSD, TFSS, FTS, FW, FTSH
- Approvals: RoHS compliant
Buy the Samtec Series SFM: High-Reliability Connectors SFML110T1SD
Order the Samtec SFML-110-T1 connector online today and experience superior performance with Tiger Eye contacts, low insertion force, and high-density design. Perfect for demanding electronic applications requiring reliability and durability, our connector ensures seamless connections with a maximum of 10,000 mating cycles. Featuring RoHS compliance and lead-free soldering, it is suitable for modern, eco-friendly manufacturing standards. Secure your electronic components with confidence—buy online now and enjoy fast, reliable shipping directly from authorized distributors.
Get Samtec SFML-110-T1 connector today—built for precision and long-lasting durability in compact electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC SFML110T1SD?
You can click on the BUY or RFQ button to purchase SFML110T1SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFML110T1SD?
You can download the SFML110T1SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFML110T1SD?
SAMTEC
