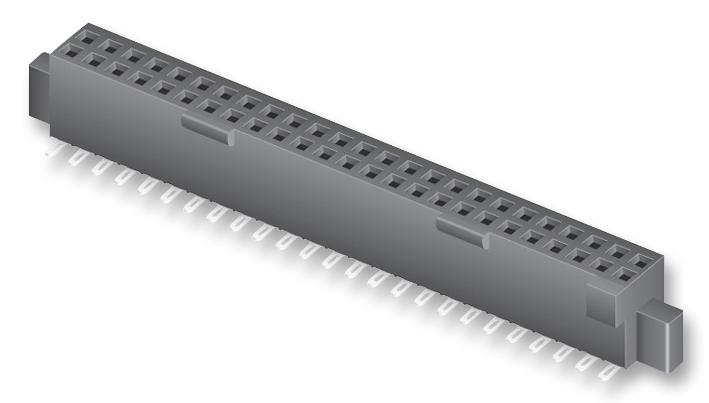

SAMTEC SFML110T2SDLC connector
The SFML110T2SDLC is a high-reliability, low insertion force connector with Tiger Eye™ contacts, suitable for industrial applications. It features a black liquid crystal polymer insulator, gold over solderable platinum plating, and supports both surface mount and through-hole mounting with flexible pitch options. The connector operates within -55°C to +125°C temperature range, rated for 3.2A per pin, and offers locking and screw-down features for secure connections. Ideal for high-density, durable electrical and electronic systems requiring precise mating and reliable performance.
SAMTEC SFML110T2SDLC connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Plating: Au over Sn on SO 1.27)
- Current Rating: 3.2A per pin
- Voltage Rating: Not specified
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: Increases with unmating
- Insertion Depth: 4.06 mm
- Material: Phosphor Bronze
- Lead Style: SMT or Through-hole
- Solderability: Lead-Free Solderable
- Surface Mount Coplanarity: 0.10 mm max for 05-25 positions
- Locking option: Available via locking clip
- Additional Options: Screw-down, locking clip, extended life features
- Wire Pitch: 1.27 mm (0.050 inch)
Buy the Samtec SFML110T2SDLC – Reliable Connector for Industrial Applications
Purchase the Samtec SFML110T2SDLC connector online today and experience reliable, low-force mating with Tiger Eye contacts. Designed for industrial-grade durability, it offers surface mount and through-hole options, with locking and screw-down features for secure connections. Rated for 3.2A per pin and operating within -55°C to +125°C, this connector ensures high performance in demanding environments. Its flexible design accommodates various mounting styles, making it ideal for high-density electronic systems that require longevity and precision. Buy now for seamless integration and dependable operation.
Get Samtec SFML110T2SDLC today—built for precision, durability, and versatile mounting options in demanding industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC SFML110T2SDLC?
You can click on the BUY or RFQ button to purchase SFML110T2SDLC from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFML110T2SDLC?
You can download the SFML110T2SDLC datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFML110T2SDLC?
SAMTEC
