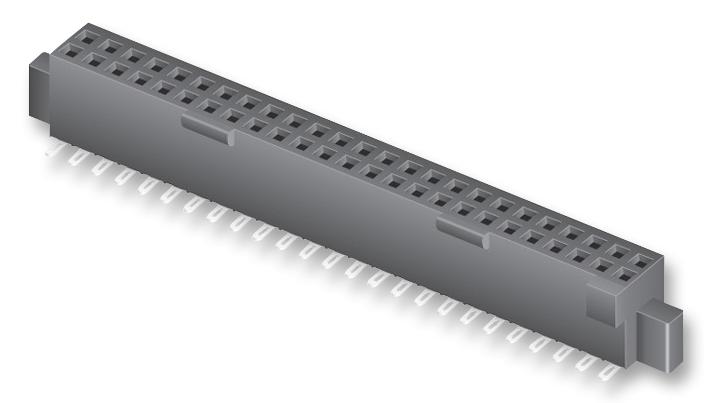

SAMTEC SFML115T2SDA Electronic Connector
The SFML115T2SDA is a high-reliability, low insertion force connector featuring Tiger Eye contacts made of Phosphor Bronze. It offers surface mount or through-hole configurations with optional locking clips, screw-down options, and a locking feature for secure mating. Rated for 3.2A per pin and operating in temperatures from -55°C to +125°C, it includes various plating options and supports multiple lead styles. This connector is ideal for applications requiring durable, high-performance connections in electronic assemblies and embedded systems, with compatibility for coplanar and perpendicular mating.
SAMTEC SFML115T2SDA Electronic Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Au over Sn
- Operating Temp Range: -55°C to +125°C
- Current Rating: 3.2A per pin
- Voltage Rating: Not specified
- Insertion Force: Standard 132 g, Withdrawal Force: 1.5 (0.42 N)
- Contact Resistance: Not specified
- Lead Styles: SMT or through-hole options with locking clip or screw-down features
- Pin Pitch: 1.27 mm (.050 inch)
- Maximum Insertion Depth: 4.06 mm
- Dimensions: Multiple sizes with standard and extended length options
- Material: Phosphor Bronze with Liquid Crystal Polymer insulator
- Certification: Not specified but designed for durability and long life
- Configurations: Single and double row options, supporting high-density connections
Buy the Buy Samtec SFM-115 T2 Part Number SFML115T2SDA Online
Order the Samtec SFML115T2SDA connector online today to ensure high-performance, durable, and secure electronic connections. This connector offers low insertion force, reliable contact performance, and versatile mounting options, making it ideal for demanding electronic assemblies, embedded systems, and high-density applications. With flexible configurations including surface-mount and through-hole, supported by various locking options and plating finishes, it guarantees long-lasting durability. Purchase online now to quickly enhance your project’s reliability with this high-quality, space-efficient connector designed for professional electronic applications.
Get Samtec SFML115T2SDA today—built for high-reliability connections with low insertion force and secure locking features.
Frequently Asked Questions
Where can I buy SAMTEC SFML115T2SDA?
You can click on the BUY or RFQ button to purchase SFML115T2SDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFML115T2SDA?
You can download the SFML115T2SDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFML115T2SDA?
SAMTEC
