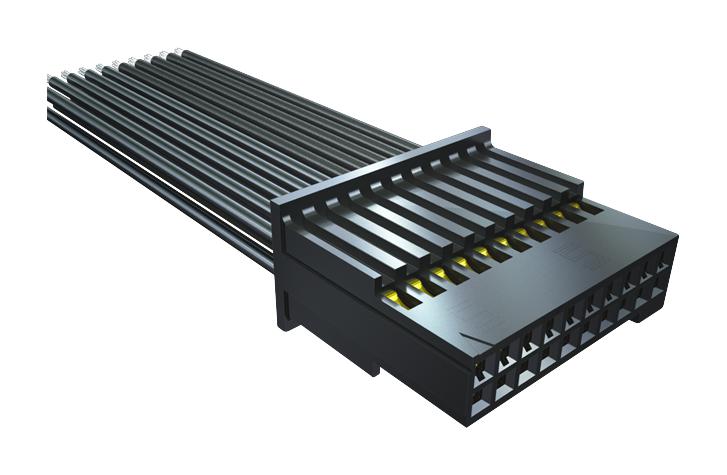

SAMTEC SFSD0528H0500SR Discreet Cable Assembly
The TIGER EYE Discrete Cable Assembly is designed for reliable, high-performance electrical connections in various electronic applications. Features include black LCP insulator material, BeCu contacts with gold over nickel plating, and a current rating of 2.9 A per pin. Suitable for 28 or 30 AWG wire, it can operate within a temperature range when mated to TFM-WT series connectors. The cable offers a locking feature, color-coded wiring, and RoHS compliance, making it ideal for demanding industrial and electronic systems requiring secure, durable connections.
SAMTEC SFSD0528H0500SR Discreet Cable Assembly Specifications:
- Insulator Material: Black LCP
- Contact Material: BeCu
- Plating: Au over 50 p! (1.27 um) Ni
- Current Rating: 2.9 A per pin
- Wire Gauge: 28 or 30 AWG
- Voltage Rating: 275 VAC (PVC), 235 VAC (Teflon®)
- Operating Temperature Range: When mated to TFM-WT series connectors
- RoHS Compliant: Yes
- Mating Compatibility: TFM-WT series, TFML series
- Number of Positions: 28 or 30
- Cable Length and Options: Various, non-standard options available
- Additional Features: Locking feature with retention latch and screw down, color-coded wiring, and optional end notches
Buy the Samtec Series TIGER Eye Discrete Cable Assembly: SFSD0528H0500SR
Order the Samtec TIGER Eye Discrete Cable Assembly online today for an exceptional connection solution. Featuring durable BeCu contacts with gold over nickel plating, a locking latch, and compliant with RoHS standards, this assembly ensures secure, long-lasting performance. Suitable for 28 or 30 AWG wire gauges, it operates efficiently within the specified temperature ranges and offers versatile options for various connector configurations. Purchase now to enhance your electronic systems' reliability and ease of installation.
Buy Samtec TIGER Eye Discrete Cable Assembly now and experience unmatched reliability and performance for your electronic and industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC SFSD0528H0500SR?
You can click on the BUY or RFQ button to purchase SFSD0528H0500SR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFSD0528H0500SR?
You can download the SFSD0528H0500SR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFSD0528H0500SR?
SAMTEC
