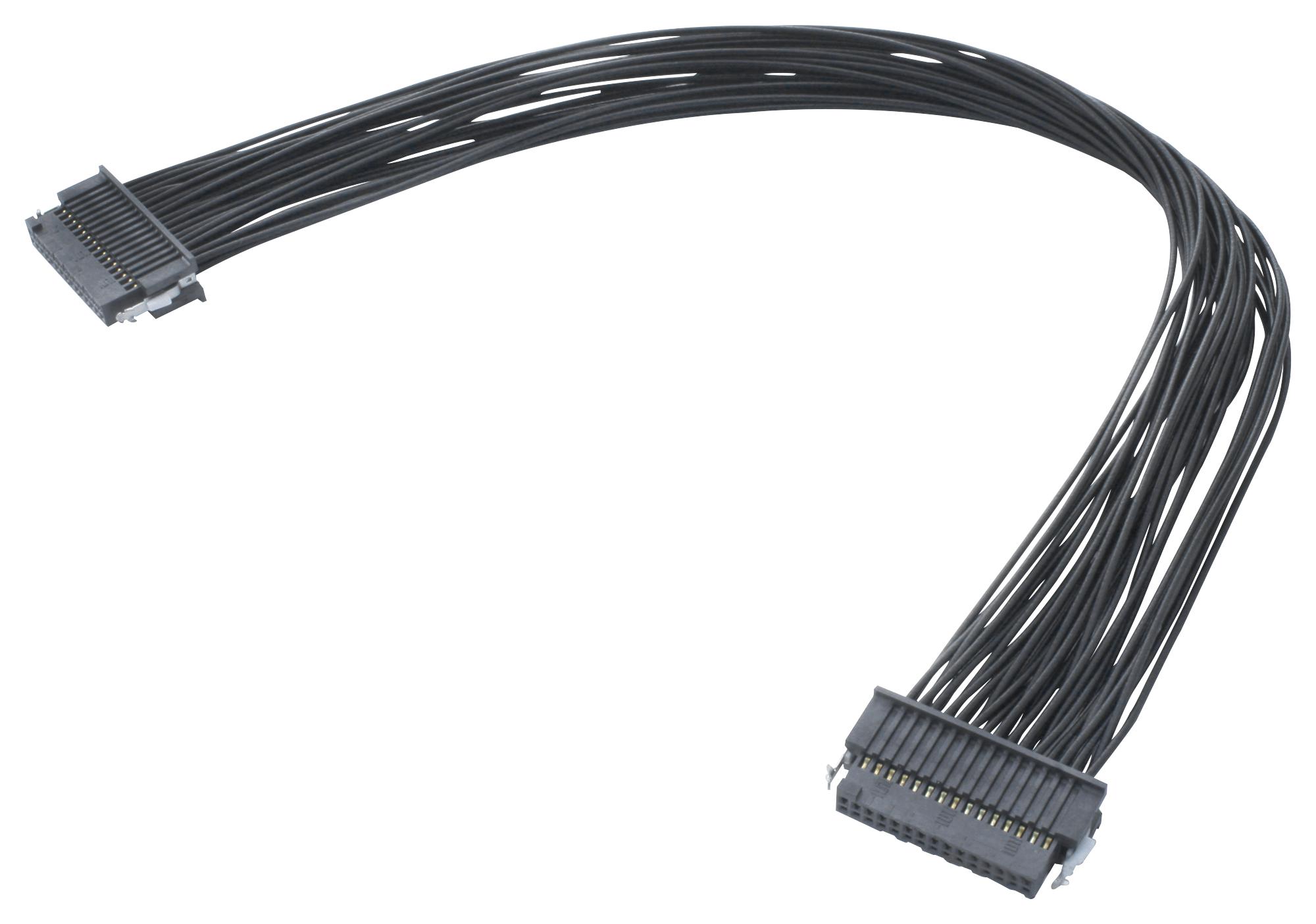

SAMTEC SFSD1528H1000DRNDX Electrical Connector
The SFSD1528H1000DRNDX is a high-quality, RoHS compliant electrical connector with insulator made of black LCP and BeCu contacts. It features gold plating over 50 micrometers of gold, and is rated for 2.9 A per pin, suitable for wiring with 28 or 30 AWG wires. Operating temperature ranges from -40°C to +125°C depending on the cable material, with a voltage rating of 275 VAC for PVC cables. Designed for secure mating with locking features, color-coded cables, and various length options, it ensures reliable electrical connections in demanding environments.
SAMTEC SFSD1528H1000DRNDX Electrical Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: BeCu
- Plating: Au over 50p"
- Current Rating: 2.9 A per pin
- Operating Temperature Range: -40°C to +125°C
- Voltage Rating: 275 VAC (PVC), 235 VAC (Teflon®)
- Wire: 28 or 30 AWG
- RoHS Compliant: Yes
- Cable Coding: Brown, Red, Orange, Yellow, Green, Violet, Gray, White, Black, Blue
- Locking Feature: For mating to TFML Series
- Length Options: Up to 82.60 mm
- Connector Type: Single or double-ended cable assemblies
- Retention: Min 50 lb, Max 5.96 lb for terminal/housing
- Crimp Retention: Min 4.6 lb, Max 82 lb
Buy the Buy Samtec SFSD1528H1000DRNDX Part Number Online
Purchase the Samtec SFSD1528H1000DRNDX connector online today for dependable, high-quality electrical connections. Designed with a black LCP insulator and BeCu contacts, it features gold plating over 50 micrometers for excellent conductivity and corrosion resistance. Rated for 2.9 A per pin, it supports 28-30 AWG wires and operates effectively from -40°C to +125°C. With a voltage rating up to 275 VAC, this connector offers secure mating with lock features and color-coded cables, making it ideal for industrial, automation, and electronic applications.
Order your Samtec SeriesSFSD1528H1000DRNDX today and ensure reliable, high-performance electrical connections for demanding applications.
Frequently Asked Questions
Where can I buy SAMTEC SFSD1528H1000DRNDX?
You can click on the BUY or RFQ button to purchase SFSD1528H1000DRNDX from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFSD1528H1000DRNDX?
You can download the SFSD1528H1000DRNDX datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFSD1528H1000DRNDX?
SAMTEC
