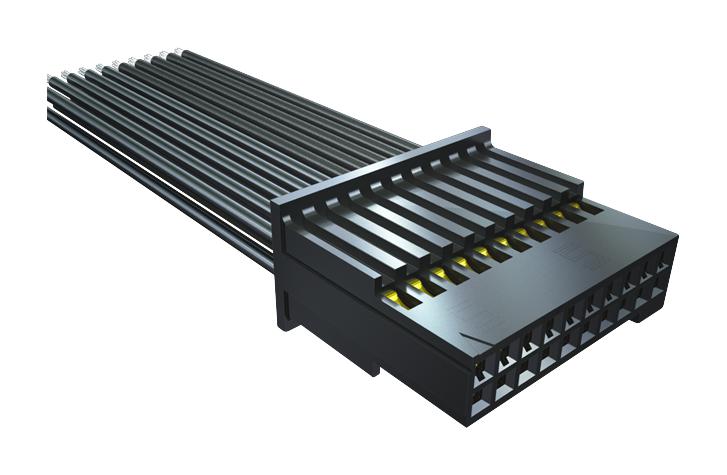

SAMTEC SFSD1528H1000SR Discreet Cable Assembly
The TIGER Eye Discrete Cable Assembly offers reliable electrical connections with a black LCP insulator, gold over nickel contact plating, and supports 28 or 30 AWG wire sizes. Designed for high current ratings of 2.9 A per pin when mated to TFM-WT modules, it features a locking mechanism, color-coded cables, RoHS compliance, and Teflon® Teflon® insulation. Suitable for applications requiring high-performance, durable, and precision wire-to-board connections with a temperature range up to 125°C and optional retention latch and screw-down features.
SAMTEC SFSD1528H1000SR Discreet Cable Assembly Specifications:
- Insulator Material: Black LCP
- Contact Material: BeCu
- Plating: Au over 50 p! Ni (1.27 um)
- Current Rating: 2.9 A per pin when mated to TFM-WT
- Wire Size: 28 or 30 AWG
- Voltage Rating: 275 VAC (PVC), 235 VAC (Teflon®)
- Operating Temperature Range: Up to 125°C
- RoHS Compliant: Yes
- Color Coded Cable: Yes
- Locking Feature: Yes
- Dimensions: Length varies; typical length approx. 76.20 mm
- Material: Teflon® insulation, BeCu contacts
- Additional Options: Retention latch, screw-down
Buy the Buy TIGER Eye Discrete Cable Assembly Part Number SFSD1528H1000SR Online
Order the TIGER Eye Discrete Cable Assembly online today. Designed for robust high-current connections, it features gold-plated contacts, locking mechanism, Teflon insulation, and compatibility with 28 or 30 AWG wires. Suitable for high-reliability applications requiring secure, long-lasting electrical performance. Its RoHS compliance, optional retention latch, screw-down feature, and precise dimensions ensure it meets demanding industry standards. Purchase now for fast delivery and optimal performance in your electronic assembly or industrial projects.
Get TIGER Eye Discrete Cable Assembly SFSD1528H1000SR today—engineered for high performance, durable connections with locking features for secure assembly.
Frequently Asked Questions
Where can I buy SAMTEC SFSD1528H1000SR?
You can click on the BUY or RFQ button to purchase SFSD1528H1000SR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFSD1528H1000SR?
You can download the SFSD1528H1000SR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFSD1528H1000SR?
SAMTEC
