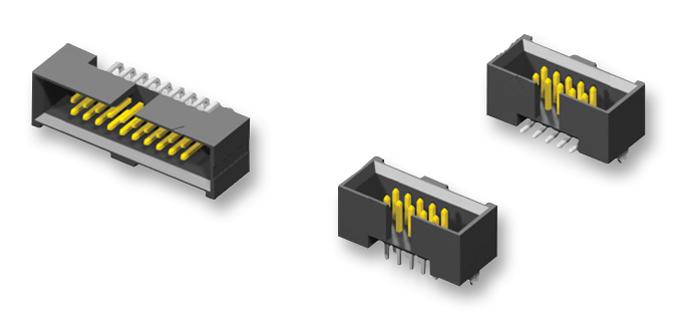

SAMTEC SHF10801LDRA Shrouded Terminal Strip
The SHF-108-01-L-D-RA is a high-quality 16-pole, two-row terminal strip with 1.27mm pitch, featuring phosphor bronze contacts with gold flash plating. Made from durable Liquid Crystal Polymer insulation, it is designed for reliable electrical connections in industrial settings. This right-angle connector includes polarization notches for easy orientation, supports surface mount installation, and is compatible with FFSD series. Operating from -55°C to +125°C, it ensures performance in harsh environments and is ideal for automation, control panels, and advanced electronic assemblies.
SAMTEC SHF10801LDRA Shrouded Terminal Strip Specifications:
- Number of pins: 16
- Pitch: 1.27 mm (0.050 inches)
- Contact Material: Phosphor Bronze
- Plating: Gold flash on post, Matte Tin on tail
- Insulator Material: Liquid Crystal Polymer (LCP)
- Temperature Range: -55°C to +125°C
- Mounting Type: Surface Mount (SMT)
- Packing: Tape & Reel, Full Reel
- Number of positions: 16
- Lead-Free Solderable: Yes
- Compatibility: FFSD series
- Polarization notch: Present
- Operation: Surface mount with manual placement option
- Size: 1.27 mm pitch, 16 positions
- Material Certification: RoHS compliant
- Processing: Suitable for pick-and-place, wave soldering, soldering after placement
- Connector Type: Shrouded terminal strip with right-angle design
Buy the Buy Samtec SHF-108-01-L-D-RA Part Number SHF10801LDRA Online
Order the Samtec SHF-108-01-L-D-RA shrouded terminal strip online today. Featuring 16 pins with 1.27mm pitch, phosphor bronze contacts, and a durable Liquid Crystal Polymer insulator, this connector is ideal for industrial and electronic applications requiring high performance and temperature resilience. Its right-angle design ensures easy mounting, polarization notch for correct orientation, and compatibility with FFSD series. Pick and place ready, RoHS compliant, and suitable for harsh environments, it provides secure, long-lasting electrical connections in control panels, automation, and more.
Get Samtec SHF-108-01-L-D-RA today—designed for reliable connections in industrial electronics and automation systems.
Frequently Asked Questions
Where can I buy SAMTEC SHF10801LDRA?
You can click on the BUY or RFQ button to purchase SHF10801LDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SHF10801LDRA?
You can download the SHF10801LDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SHF10801LDRA?
SAMTEC
