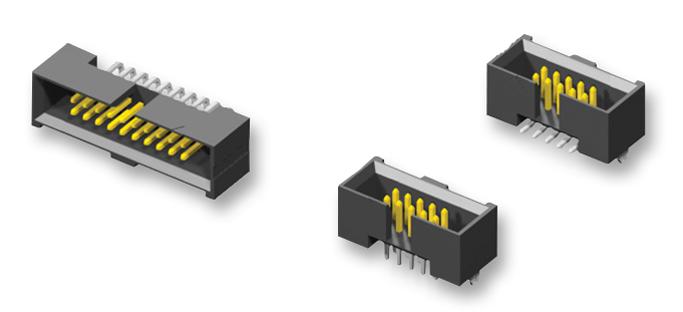

SAMTEC SHF11301LDRA Shrouded Terminal Strip
The SHF-113-01-L-D-RA is a 26-pole, two-row, 1.27mm shrouded terminal strip with phosphor bronze contacts and a Liquid Crystal Polymer insulator. Designed for reliable electrical connection, it features a right-angle configuration and polarization notch for proper orientation. Compatible with FFSD series connectors without strain relief, it operates efficiently within a temperature range of -55°C to +125°C. Ideal for industrial applications requiring durable, lead-free, and RoHS compliant connectors to ensure performance and safety.
SAMTEC SHF11301LDRA Shrouded Terminal Strip Specifications:
- Number of Pins: 26
- Pitch: 1.27mm (.050")
- Insulator Material: Liquid Crystal Polymer (LCP)
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50μ" Ni
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliance: Yes
- Processing: Lead-Free, Solderable
- Lead Coplanarity: 0.10mm (.004") Max
- Applicable for Surface Mount Technology
- Configuration: Right-angle, Two-row
- Polarization notch for correct orientation
- Compatible with FFSD connectors without strain relief
- Non-standard sizes and options available
- Designed for industrial and electronic applications
- Subject to change due to technical progress
Buy the Samtec Series ESHF Shrouded Terminal Strip: SHF11301LDRA
Discover the high-quality Samtec Series ESHF shrouded terminal strip, ideal for industrial applications requiring durable, RoHS compliant connectors. With a 26-pole, two-row configuration, 1.27mm pitch, phosphor bronze contacts, and a Liquid Crystal Polymer insulator, this right-angle connector offers excellent contact reliability. Its operating temperature range of -55°C to +125°C makes it suitable for various environments. Purchase online today to ensure your devices have dependable, lead-free connection components that meet modern industry standards and safety regulations.
Order your Samtec Series ESHF SHF11301LDRA shrouded terminal strip today and ensure reliable, high-quality electrical connections for your industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC SHF11301LDRA?
You can click on the BUY or RFQ button to purchase SHF11301LDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SHF11301LDRA?
You can download the SHF11301LDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SHF11301LDRA?
SAMTEC
