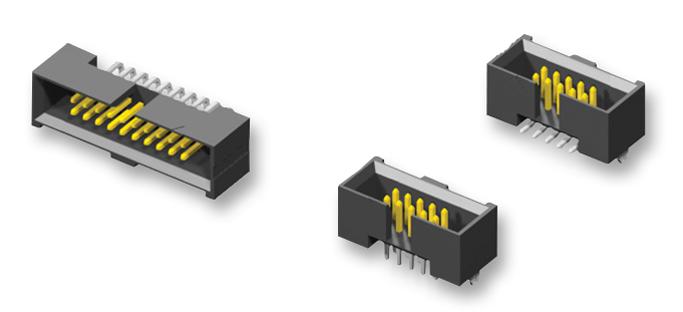

SAMTEC SHF11301LDSM Terminal Strip
The SHF-113-01-L-D-SM is a 26-pole, two-row, 1.27mm pitch shrouded terminal strip with phosphor bronze contacts measuring 10 microns (0.01 inch) thick and a Liquid Crystal Polymer insulator. Designed for surface-mount applications, it is compatible with FFSD series connectors and features a polarization notch for correct orientation. Operating from -55°C to +125°C, this connector ensures reliable performance in industrial and automation environments, providing secure electrical connections with RoHS compliance and lead-free solderability.
SAMTEC SHF11301LDSM Terminal Strip Specifications:
- Number of pins: 26
- Pitch: 1.27 mm
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Contact Thickness: 10 microns (0.01 inch)
- Surface Mount: Yes
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Operating Temperature Range: -55°C to +125°C
- Compatible with FFSD Series Connectors
- Includes Polarization Notch for proper orientation
- Size: Two-row, standard 26-pin configuration
- Material: Black Liquid Crystal Polymer insulator
- Terminal Material: Phosphor Bronze with Sn or Au over plating
Buy the Buy Samtec SHF11301LDSM Part Number SHF11301LDSM Online
Order the Samtec SHF11301LDSM terminal strip online today to ensure precise, secure electrical connections for industrial automation. This 26-pole, two-row connector features phosphor bronze contacts and a Liquid Crystal Polymer insulator, offering excellent durability and thermal stability from -55°C to +125°C. Its surface-mount design with polarization notch simplifies assembly, while RoHS compliance and lead-free solderability guarantee environmentally friendly, high-quality performance. Perfect for stress-free installation and long-lasting reliability in demanding applications.
Get Samtec SHF11301LDSM today—designed for reliable connections in industrial and automation environments.
Frequently Asked Questions
Where can I buy SAMTEC SHF11301LDSM?
You can click on the BUY or RFQ button to purchase SHF11301LDSM from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SHF11301LDSM?
You can download the SHF11301LDSM datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SHF11301LDSM?
SAMTEC
